BVOH K5

  • TOUGHNESS
  • STRENGTH
  • HEAT RESISTANCE
  • TRANSPARENCY
CHOOSE DIAMETER
  • 1.75mm
  • 2.85mm
  • 3.0mm
CHOOSE WEIGHT
  • 1kg
  • 0.5kg
  • 3kg
  • 5kg
CHOOSE COLORS
COLOR:
  • Natural

Feature Introduction:

ABS K5 is an ABS consumable that is easy to print. This consumable improves the defects of ordinary ABS materials that are easy to warp and crack when printing, retains the original good comprehensive mechanical properties of ABS materials, lower odor, lower shrinkage and lower printing temperature, and makes your printing process more simple, efficient, practical and fun.

Specification And Color:

The product of this brand provides three specifications of wire diameter: 1.75mm, 2.85mm and 3.0mm, and the wire diameter tolerance is ± 0.03mm. The weight of each roll can be 1kg, 3kg, 5kg or 10kg. 39 solid colors and 4 luminous colors are available.

Print Parameter Settings:

Printing temperature: 220-250 ℃, platform temperature: 80-100 ℃, printing speed: 40-80mm/s, cooling fan: OFF.

Basic Physical Properties:

ABS K5Printed copy (horizontal printing of sample, 100% linear filling)Injection molded partsTest standards
Density (g/cm3)1.05ISO 1183
Melt index (g/10min) * 130-35ISO 1133
Thermal deformation temperature (℃) * 285 ISO 75
Vicat softening temperature (℃) * 395 ISO 306
Tensile strength (MPa)41 ISO 527
Tensile elongation at break (%)11
Bending strength (MPa)77 ISO 178
Bending modulus (MPa)2600
Notched impact strength (KJ/m2)39 ISO 179
Notch impact strength (KJ/m2)20

*1. Test condition: temperature (T)=220 ℃; Mass (m)=10kg.
*2. Test condition: bending stress=0.45MPa; Heating rate=120 ℃/h.
*3. Test condition: load=10N; Heating rate=120 ℃/h.

Recommended Applications:

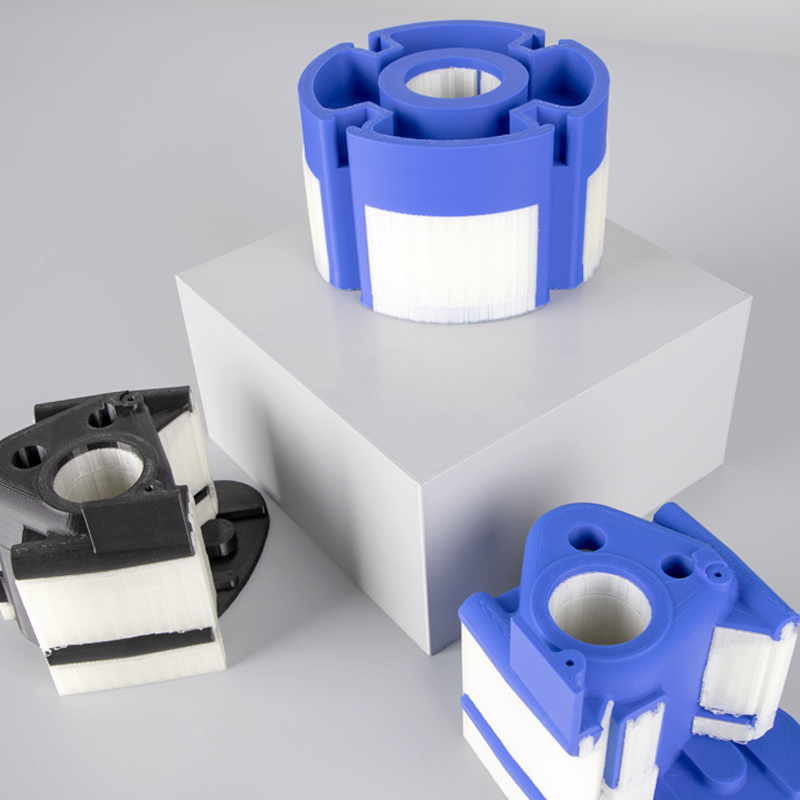

ABS K5 is recommended to be applied to models and parts that require certain heat resistance temperature and impact strength. Of course, there is no doubt that this product will print general models.
