Micro R

  • TOUGHNESS
  • Precision
  • Hardness
  • Viscosity
CHOOSE WEIGHT
  • 1kg
  • 500g
CHOOSE COLORS
COLOR:
  • HD Red

Feature Introduction:

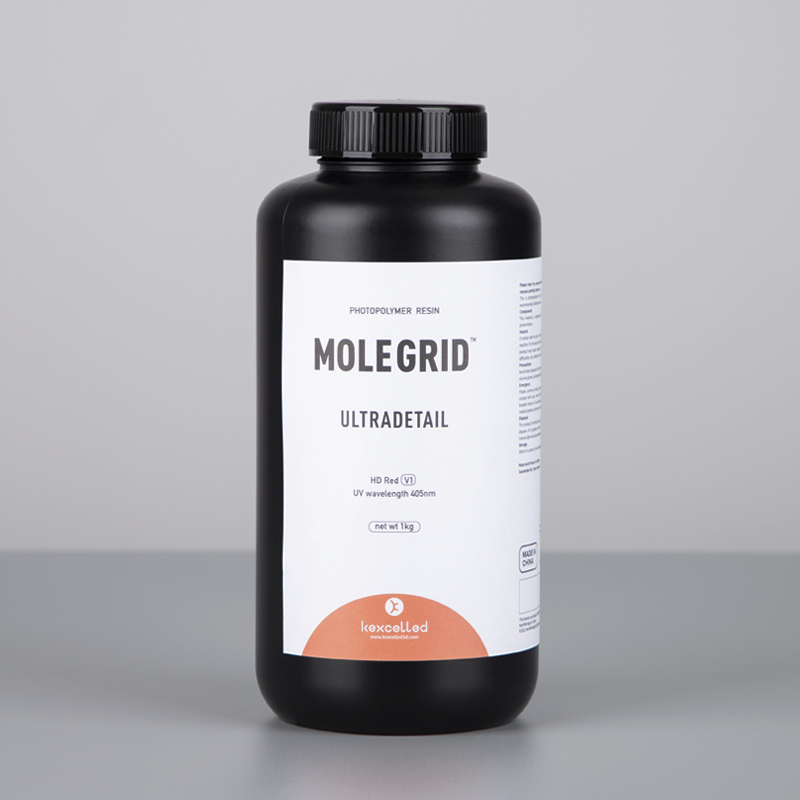

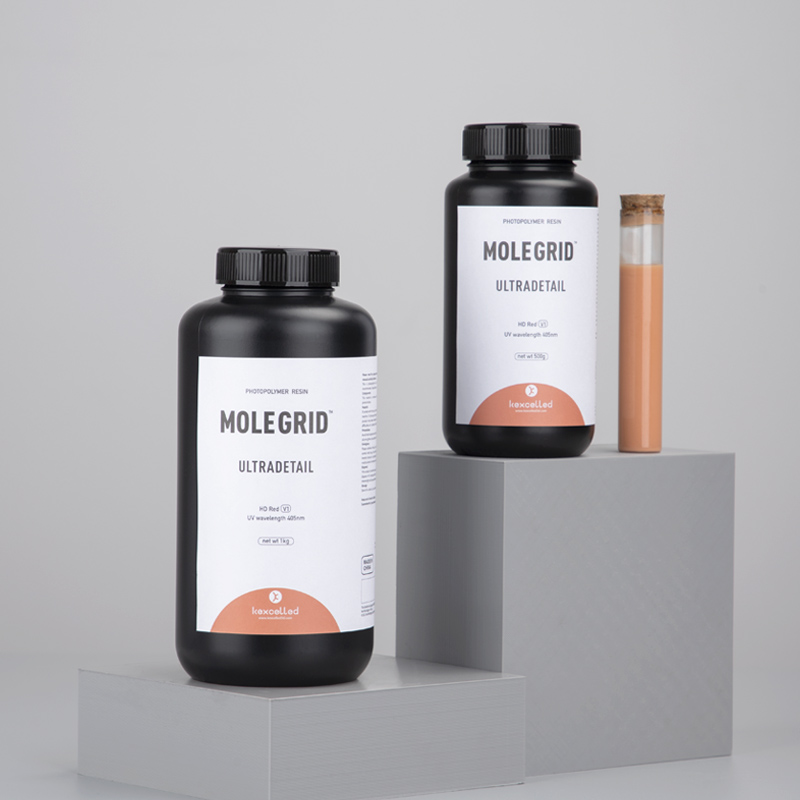

MOLEGRIDTM Micro R is a LCD high precision photocurable resin, with low odor emission, high precision, heat resistant, high strength and other characteristics. This resin is suitable for various LCD equipment in the 405nm band.

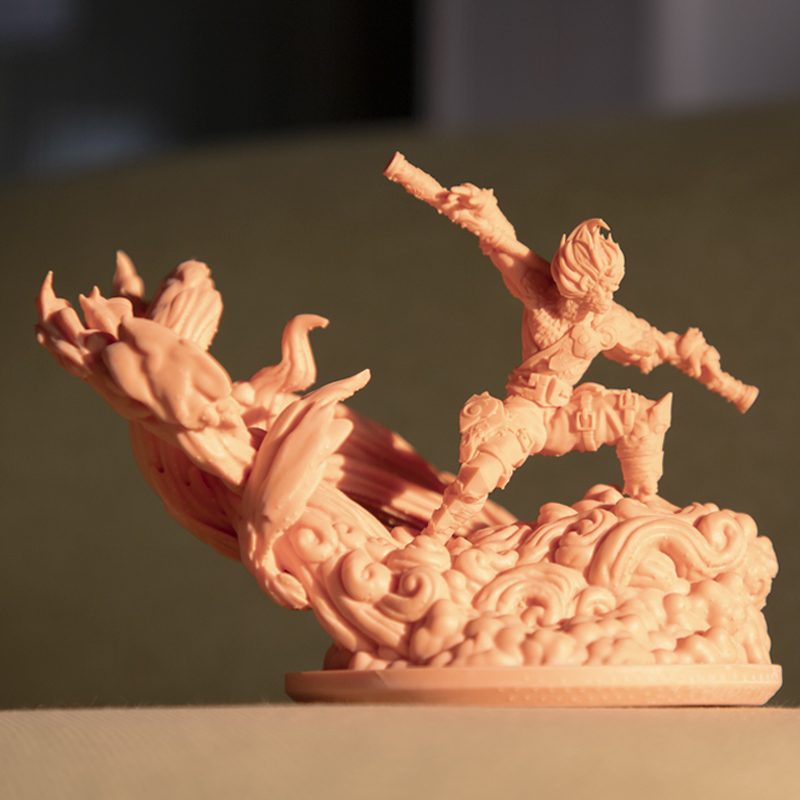

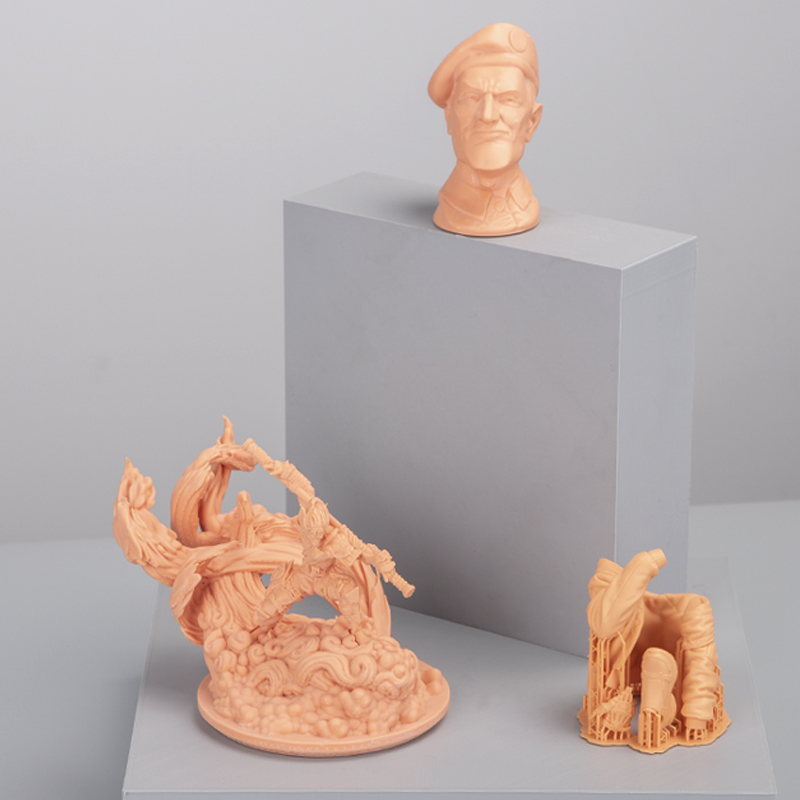

MOLEGRIDTM Micro R is widely used in garage Kits, models, and designs that require high precision and detail. Especially suitable for studios and individual players.

Basic Physical Properties:

Type TDS
Density g/cm3 @25℃ Viscosity cps @25℃ Tensile strength Mpa Tensile modulus Mpa Elongation at break Flexural strength Mpa Flexural modulus Mpa Impact value J/m Heat deflection temperature ℃@0.45MPa Hardness Ashes Tear strength kN/m
Micro R 1.10-1.20 250-350 36.00 2550.00 16.00% 51.00 1565.00 25.05 55.00 84D
