PAHT K7CF

  • TOUGHNESS
  • STRENGTH
  • HEAT RESISTANCE
  • Printability
  • Water Absorption
  • Rigidity
CHOOSE DIAMETER
  • 1.75mm
CHOOSE WEIGHT
  • 0.5kg
  • 1kg
  • 3kg
CHOOSE COLORS
COLOR:
  • Black

Feature Introduction:

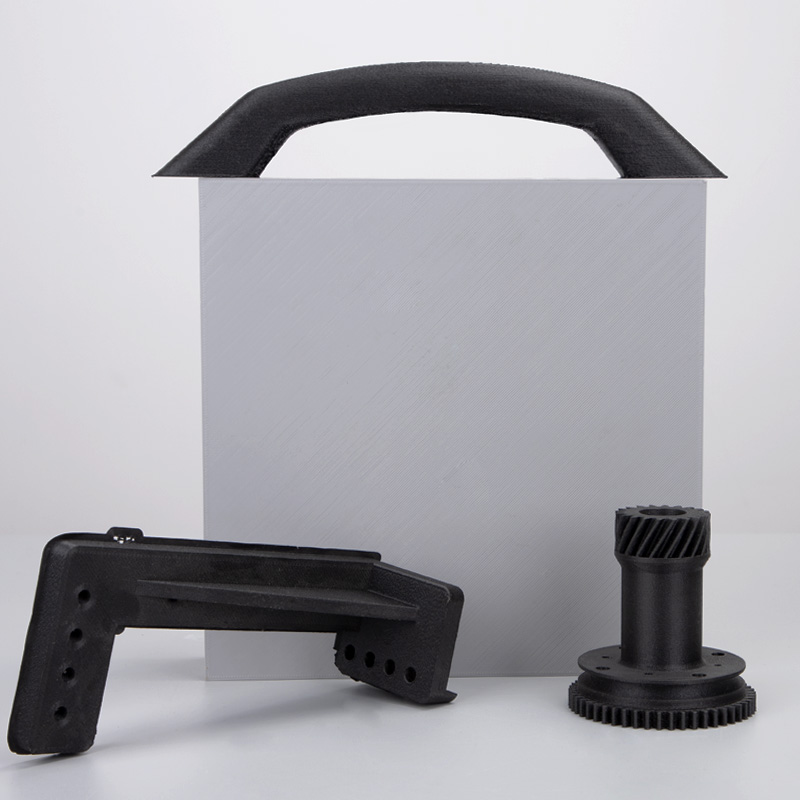

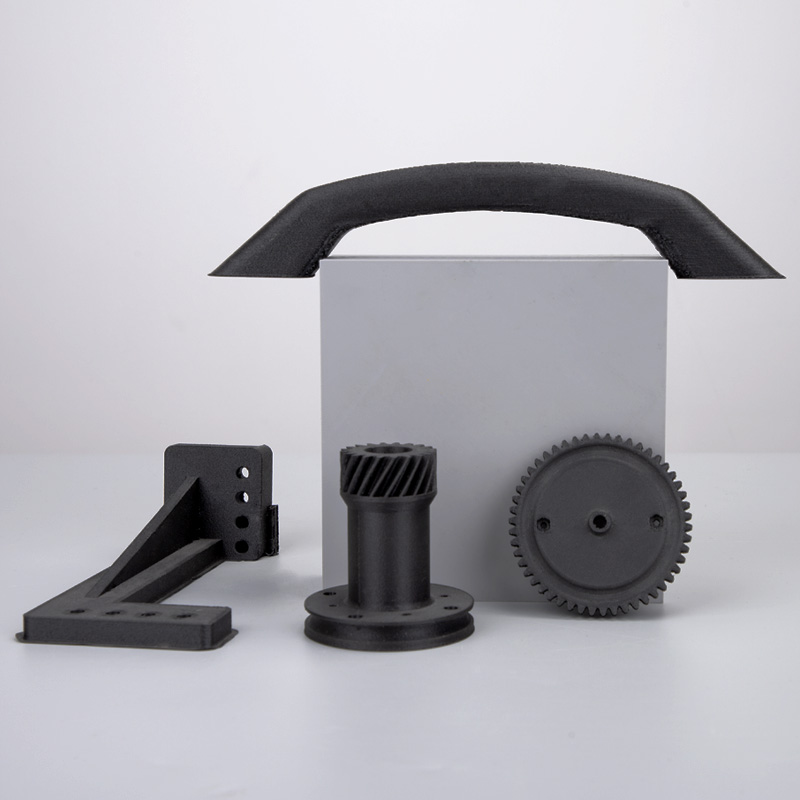

PAHT K7CF is a PA6-based carbon fiber-reinforced nylon consumable with high strength and rigidity. Printed parts are capable of over 100 MPa’s tensile strengths ( 140 MPa under the optimum printer and printing setup), and their continuous operating temperatures reach up to 150°C. With these properties, they are applicable to wear-resistance or high-strength parts in automobiles or machinery and can replace metal parts in multiple applications. It is recommended to use nozzles made of wear-resistant materials.

Basic Physical Properties:

PAHT K7CFPrinted copy (horizontal printing of sample, 100% linear filling)Injection molded partsTest standards
Density (g/cm3)1.15ISO 1183
Melt flow rate (MFR) 120-25ISO 1133
Heat deflection temperature(HDT)2180 ISO 75
Vicat softening temperature(VST)3214 ISO 306
Tensile strength (MPa)80-110 ISO 527
Elongation at break(%)2-4
Maximum force(Mpa)110-130 ISO 178
Flexural modulus(Mpa)5000-6000
Impact strength(KJ/m2)20-30 ISO 179
Notch impact strength1(KJ/m2)4-6

*1. Test condition: temperature (T)=270 ℃; Mass (m)=2.16kg.
*2. Test condition: bending stress=0.45MPa; Heating rate=120 ℃/h.
*3. Test condition: load=10N; Heating rate=120 ℃/h.
