Study Model

  • TOUGHNESS
  • STRENGTH
  • HEAT RESISTANCE
  • Printability
  • Rigidity
  • Precision
  • Hardness
  • Viscosity
CHOOSE WEIGHT
  • 1kg
  • 500g
CHOOSE COLORS
COLOR:
  • White

Feature Introduction:

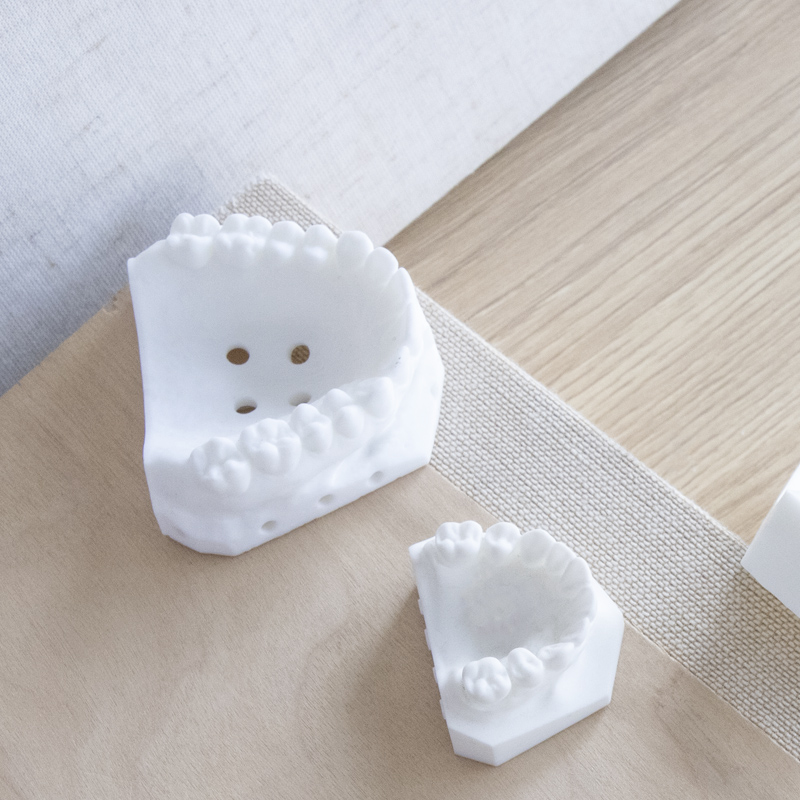

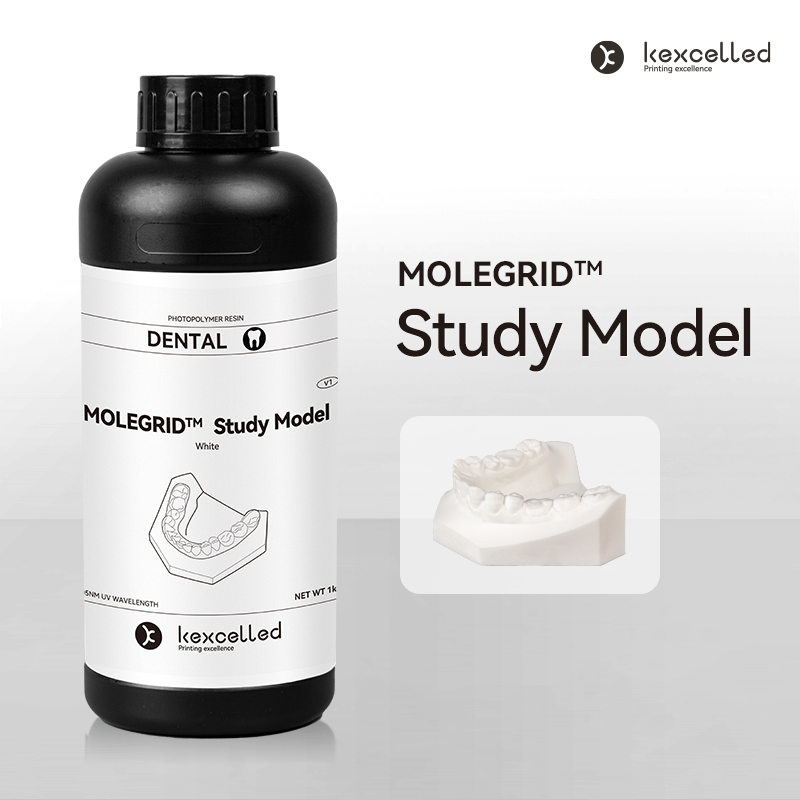

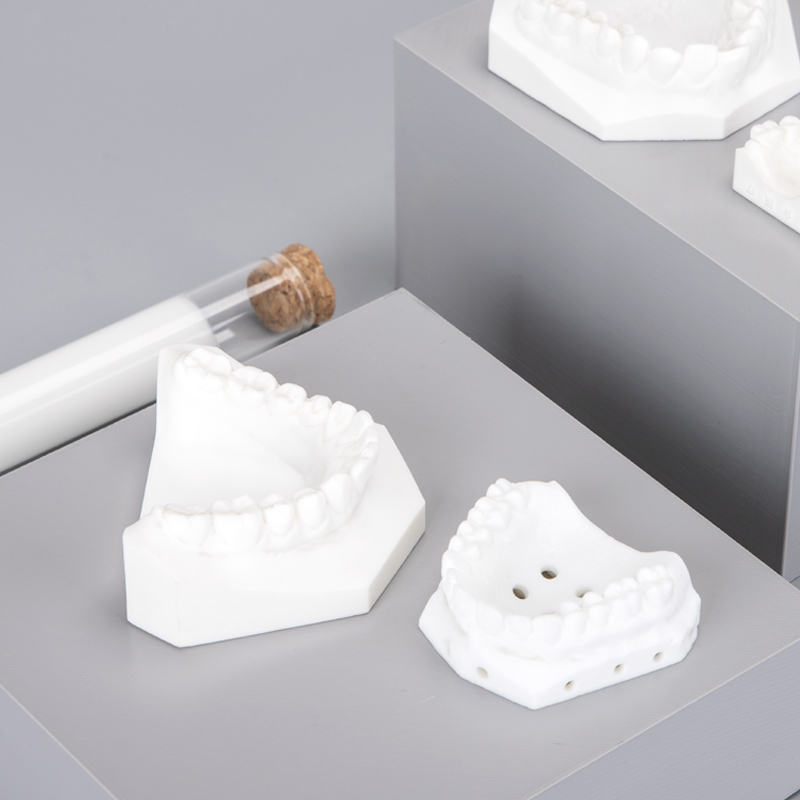

MOLEGRID™ Study Model resin is a high-brightness, yellowing-resistant archival dental model resin designed to mimic plaster. It features low odor, good precision retention after molding, and low shrinkage deformation. It is compatible with various 3D printing equipment operating in the 405nm wavelength range.

MOLEGRID™ Study Model is widely used in dental archival model and white model designs, particularly suitable for dental clinics, hospitals, and studios.

Basic Physical Properties:

TypeTDS
Density g/cm3 @25℃Viscosity cps @25℃Tensile strength MpaTensile modulus MpaElongation at breakFlexural strength MpaFlexural modulus MpaImpact value J/mHeat deflection temperature ℃@0.45MPaHardnessAshesTear strength kN/m
Study Model1.10-1.20300-400402132.5910%6518903367.7083D
