THE K5™ PETG GF

  • TOUGHNESS
  • STRENGTH
  • HEAT RESISTANCE
  • Printability
  • Rigidity
  • Z-axis strength
CHOOSE DIAMETER
  • 1.75mm
  • 2.85mm
CHOOSE WEIGHT
  • 0.5kg
  • 1kg
CHOOSE COLORS
COLOR:
  • White
  • Vanilla Cream
  • Skylight
  • Love Bird
  • Gray Lilac
  • Summer Song
  • Leek Green
  • Macchiato
  • Black

Feature Introduction:

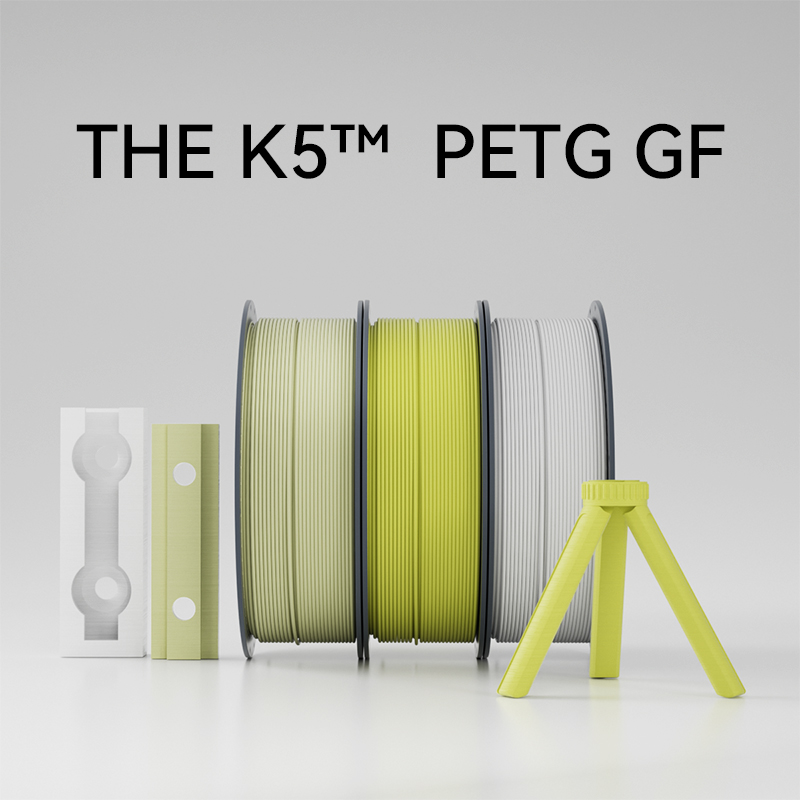

THE K5™ PETG GF is a short glass fiber reinforced PETG material. Easy to print, no clogging, high surface hardness, high toughness, matte surface finish. This material incorporates the appropriate amount of short glass fibers, which does not affect PETG’s toughness, while preventing warpage in large prints. Multiple color selections available.

Basic Physical Properties:

THE K5™ PETG GF Printed copy (horizontal printing of sample, 100% linear filling) Injection molded parts Test standards
Density (g/cm3) 1.28 ISO 1183
Melt flow rate (MFR) 1 4.8 ISO 1133
Heat deflection temperature(HDT)2 74.4   ISO 75
Vicat softening temperature(VST)3 81.5   ISO 306
Tensile strength (MPa) 40-45   ISO 527
Elongation at break(%) 8-10
Maximum force(Mpa) 70-80   ISO 178
Flexural modulus(Mpa) 2100
Impact strength(KJ/m2) 25-55   ISO 179
Notch impact strength1(KJ/m2) 3-8

*1. Test condition: temperature (T)=190 ℃; Mass (m)=2.16kg.
*2. Test condition: bending stress=0.45MPa; Heating rate=120 ℃/h.
*3. Test condition: load=10N; Heating rate=120 ℃/h.
