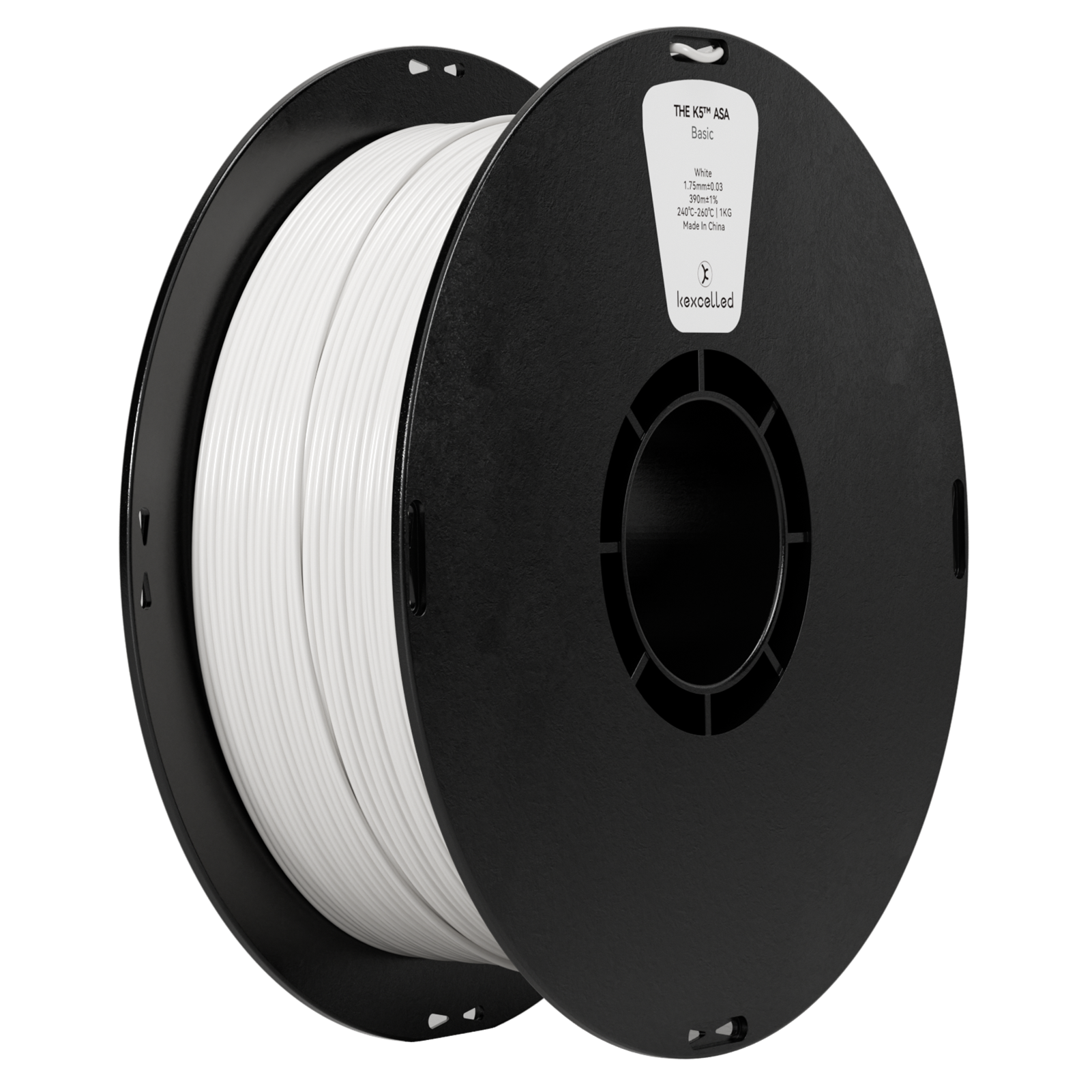

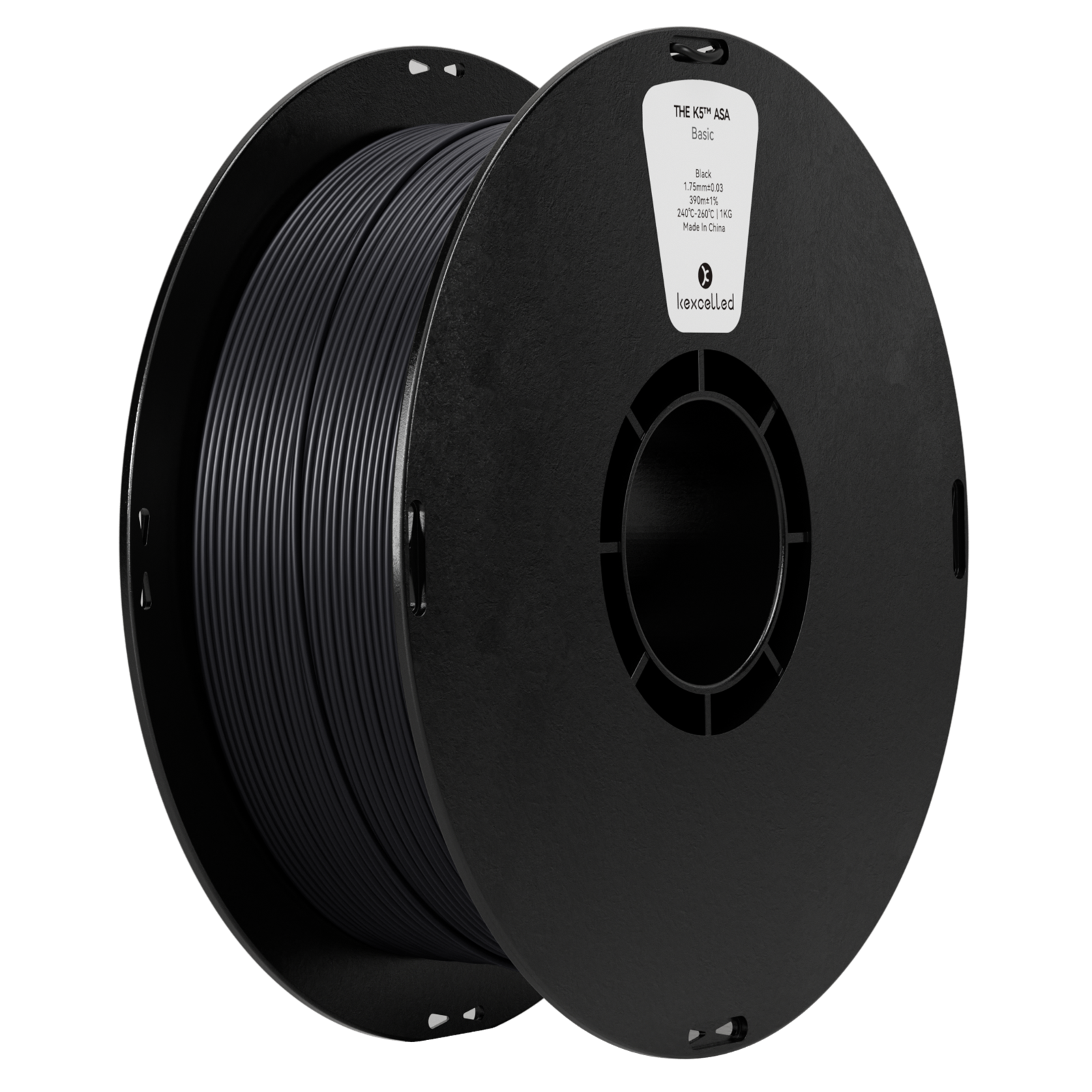

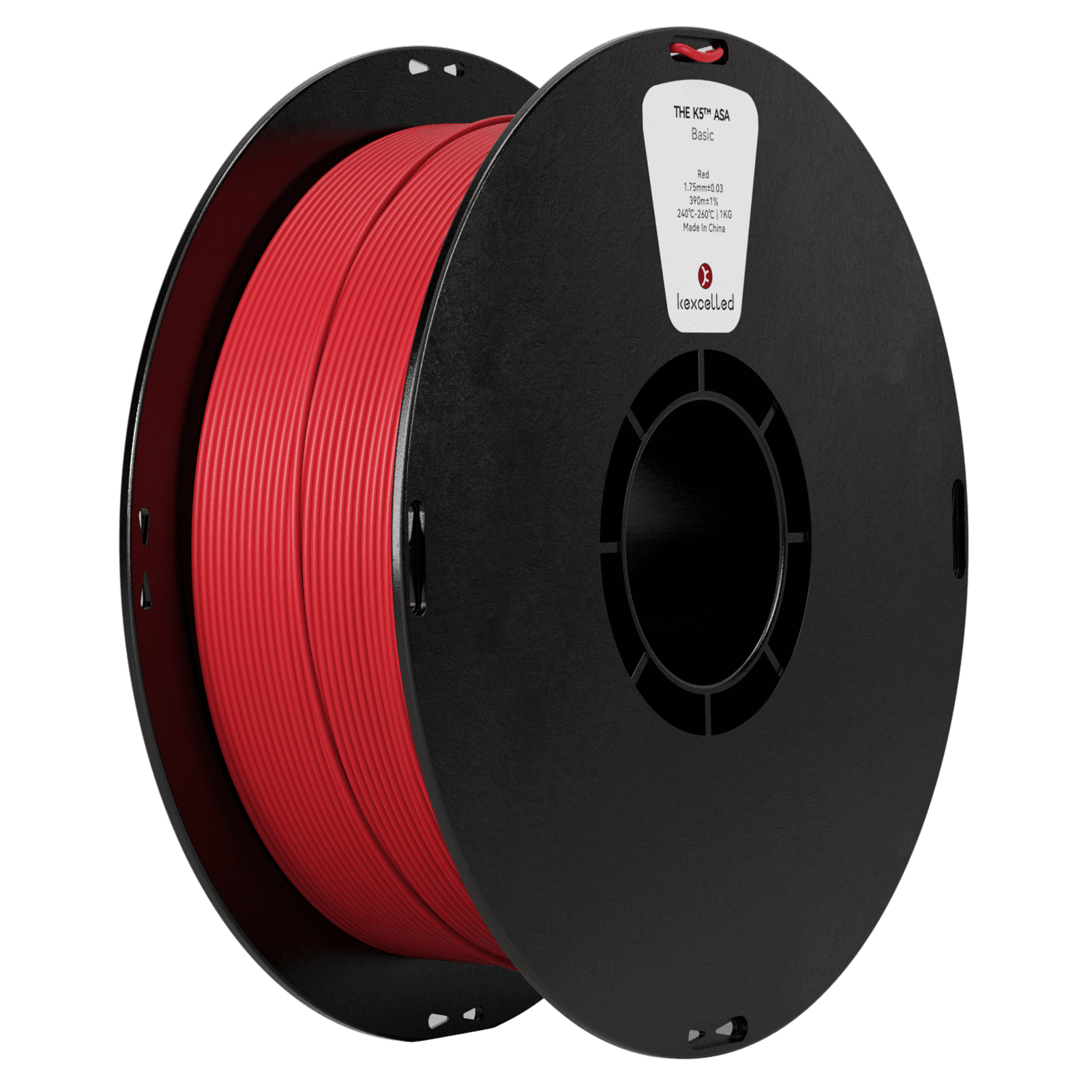

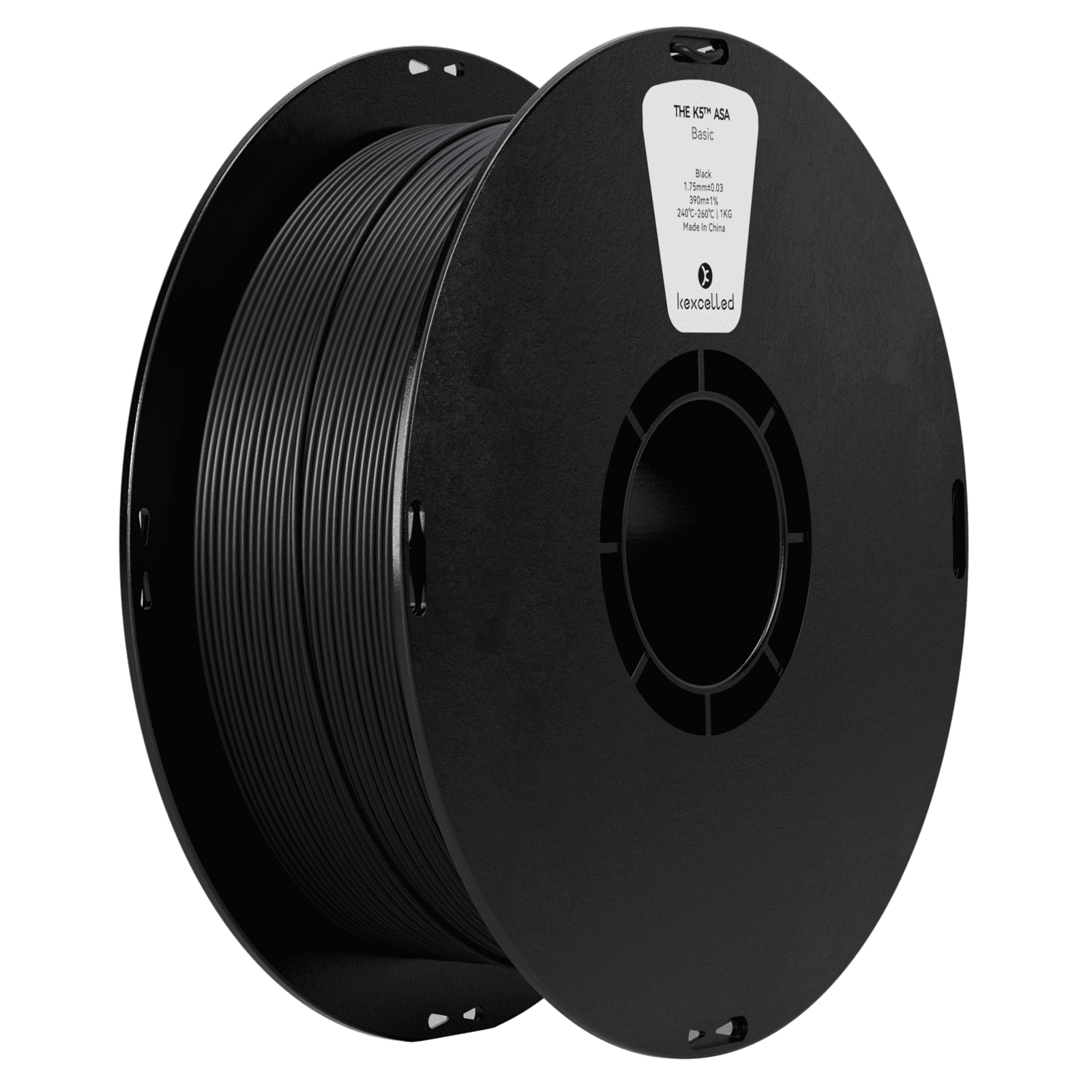

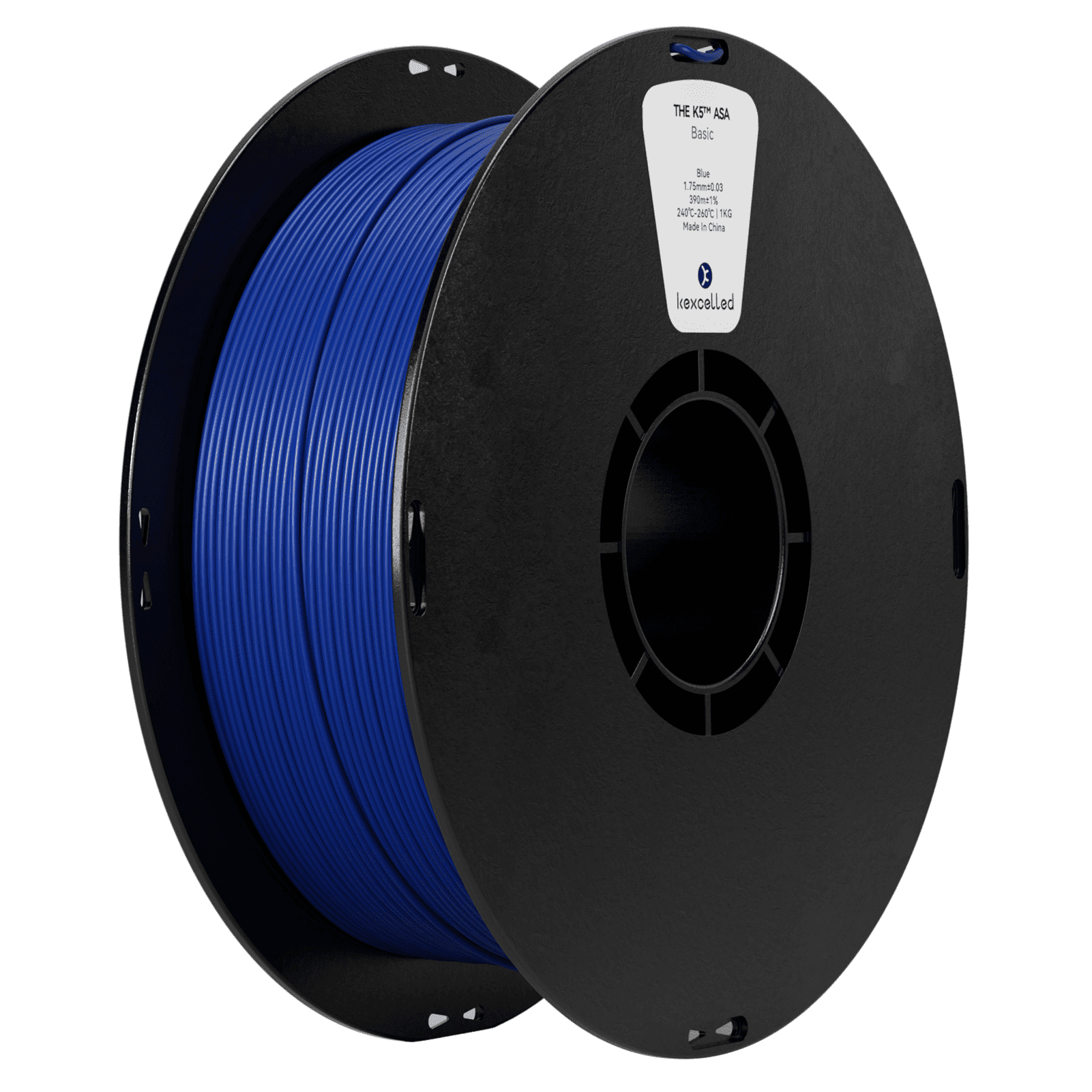

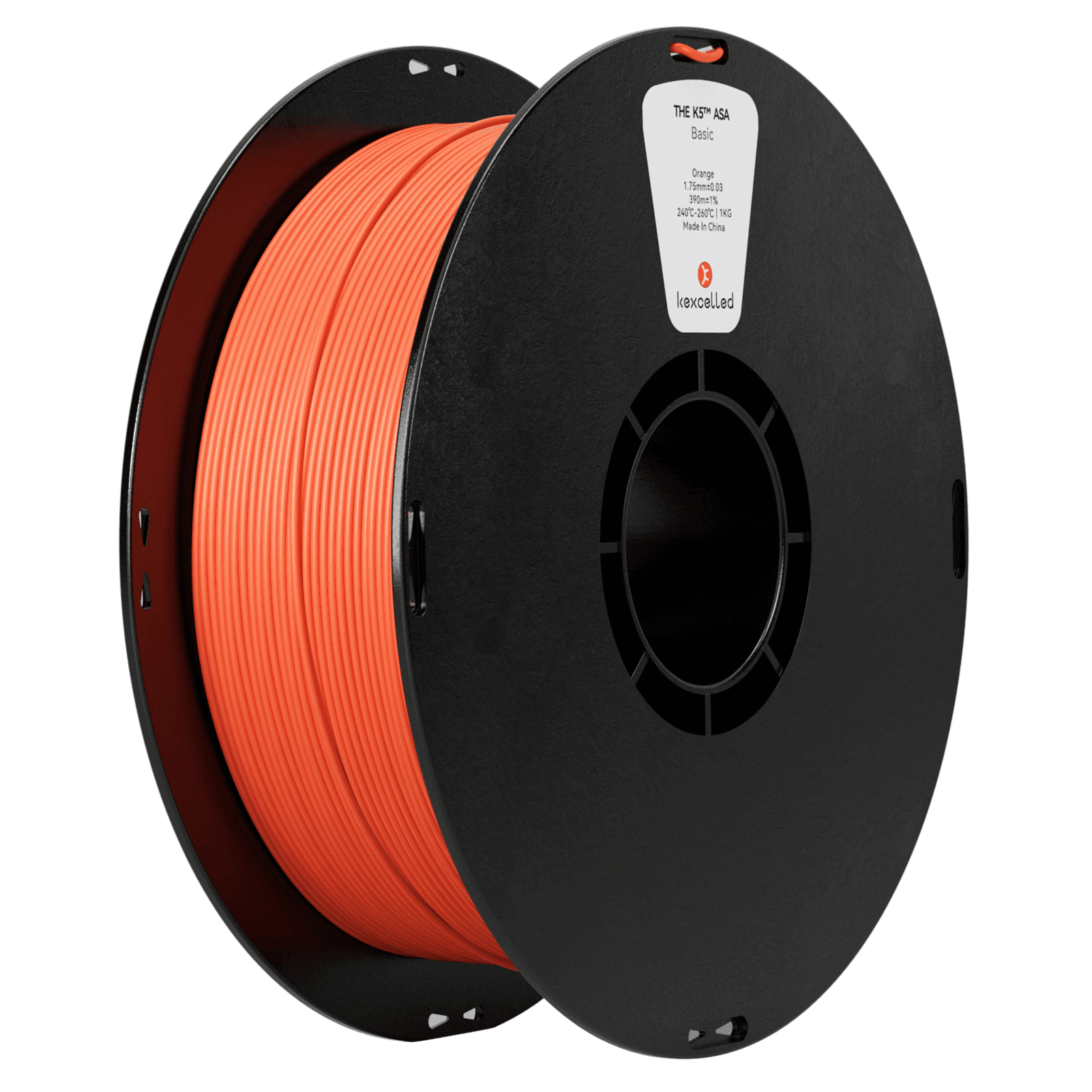

THE K5™ ASA

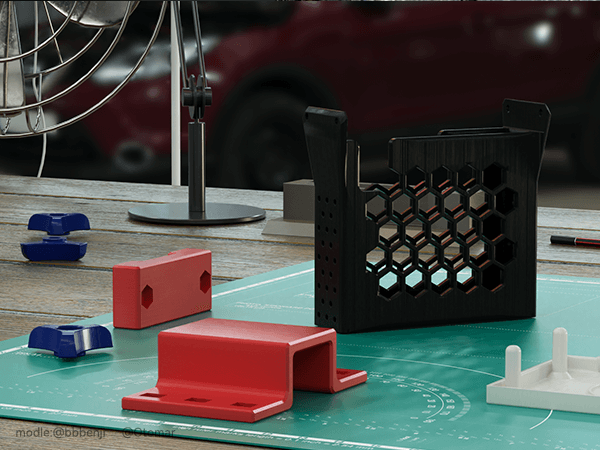

It’s a material with high toughness and heat resistance, similar to ABS, but with enhanced resistance to environmental aging. It is suitable for applications that require heat resistance, impact strength, and long-term outdoor durability, such as automotive exterior parts and air conditioner outdoor unit housings.
Suggested Printing Parameters
| Nozzle temperature | 250 ~ 290℃ |
| Bed temperature | 80 ~ 100℃ |
| Bed modification | PEI frosted board |
| Active cooling fan | 0~50% |
| Layer height | 0.2mm |
| Shell thickness | ≥ 0.8mm |
| Print speed | ≤ 170mm/s |
Technical Data Sheet (TDS)
| Material Properties | Typical Value | Test Method |
|---|---|---|
| Melt temperature | ~190℃ | ISO 11357 |
| Melt flow rate (MFR)¹ | 25~40g/10min | ISO 1133 |
| Heat deflection temperature (HDT)² | 94℃ | ISO 75 |
| Vicat softening temperature (VST)³ | 108℃ | ISO 306 |
| Density | 1.06~1.08g/cm³ | ISO 1183 |
| Odor | Odorless | / |
| Solubility | Insoluble in water | / |
Select a color
Weight options:
: 1kg, 3kg, 5kg
