Suggested Printing Parameters
| Nozzle temperature | 220 ~ 240℃ |
| Bed temperature | 35 ~ 55℃ |
| Bed modification | PEI frosted board |
| Active cooling fan | ON,50~100% |
| Layer height | 0.2mm |
| Shell thickness | ≥ 0.8mm |
| Print speed | ≤ 150mm/s |
Technical Data Sheet (TDS)
| Material Properties | Typical Value | Test Method |
|---|---|---|
| Melt flow rate (MFR)¹ | 40~50g/10min | ISO 1133 |
| Heat deflection temperature (HDT)² | / | ISO 75 |
| Vicat softening temperature (VST)³ | / | ISO 306 |
| Density | 1.22~1.24g/cm³ | ISO 1183 |
| Hardness | 65D | GB/T 531.1 |
| Resilience | 35% | GB/T 1681-2009 |
| Odor | Odorless | / |
| Solubility | Insoluble in water | / |

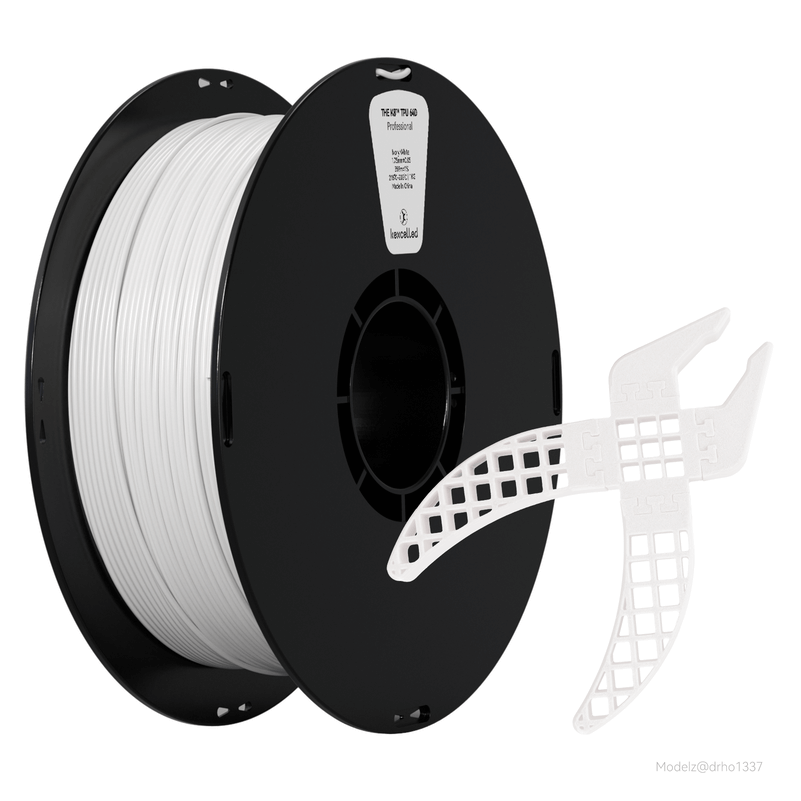

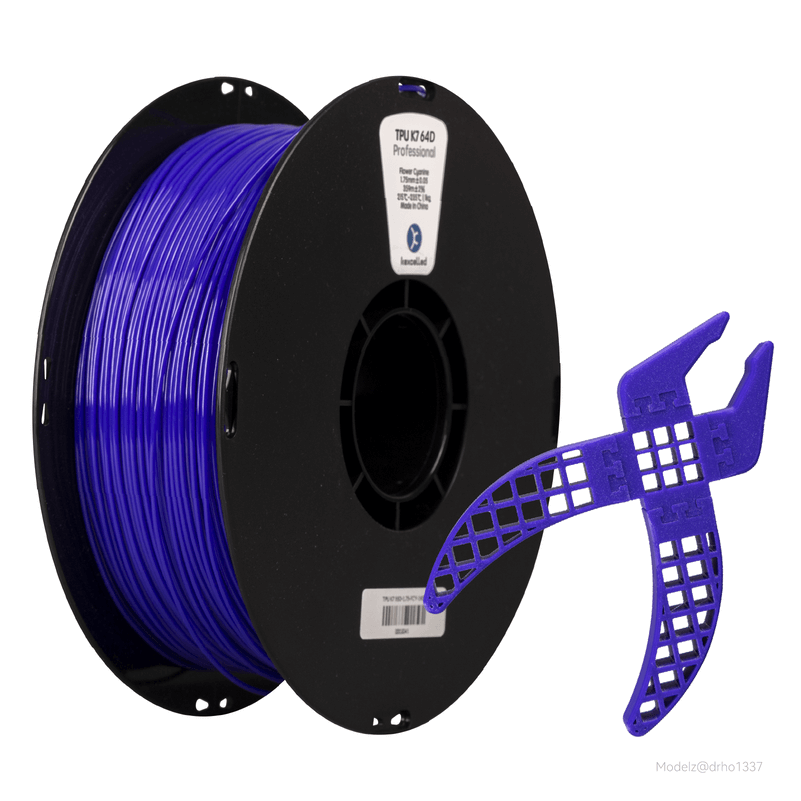

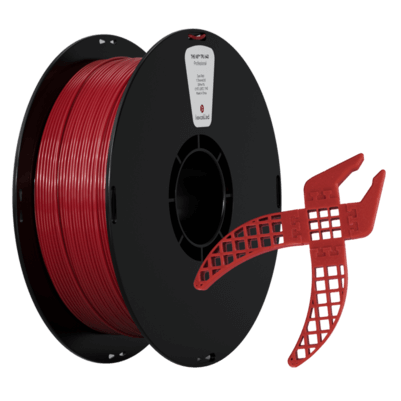

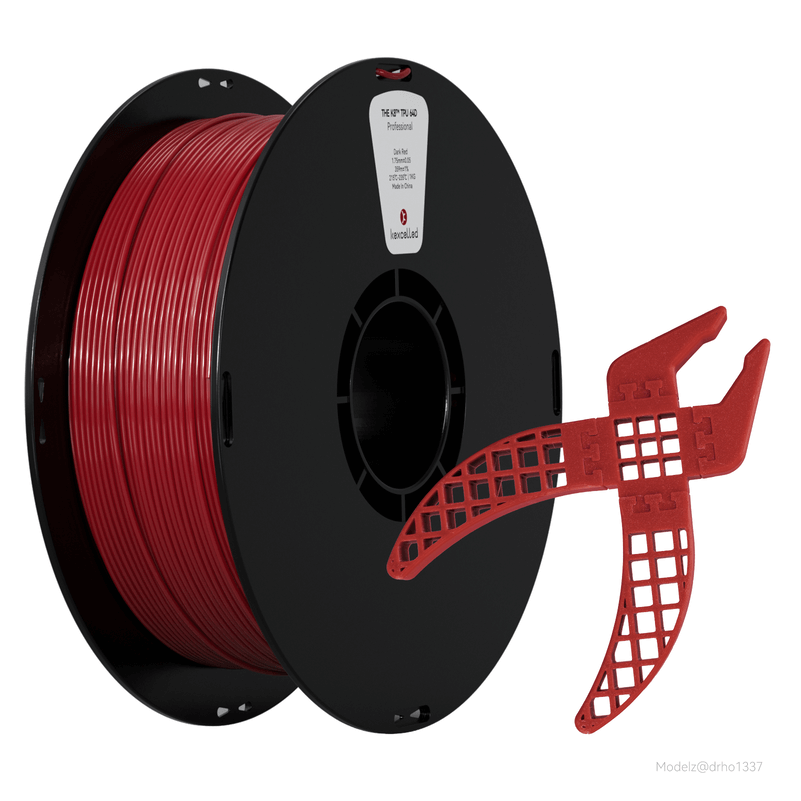

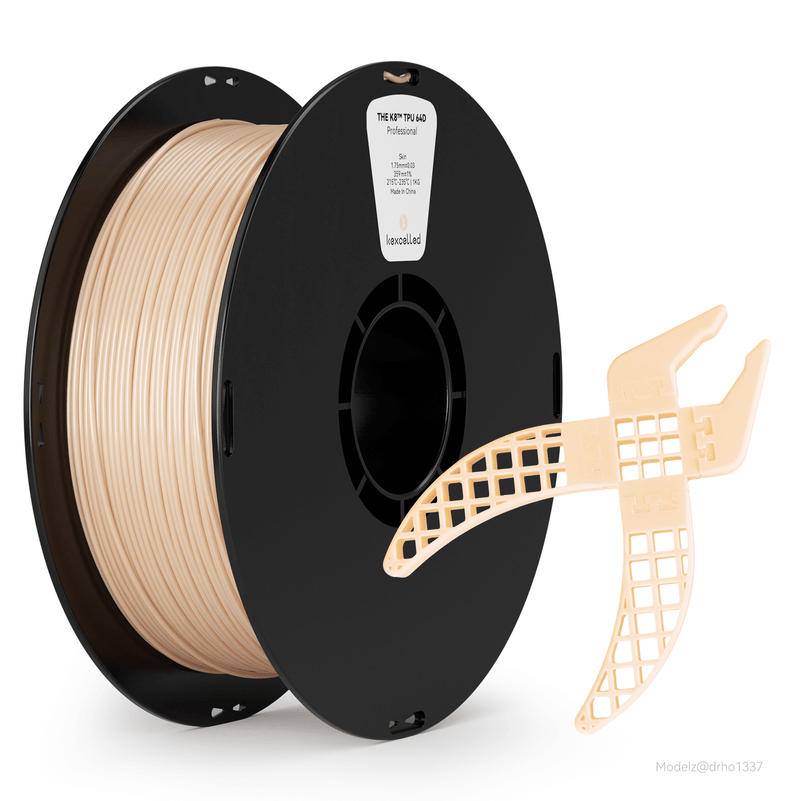

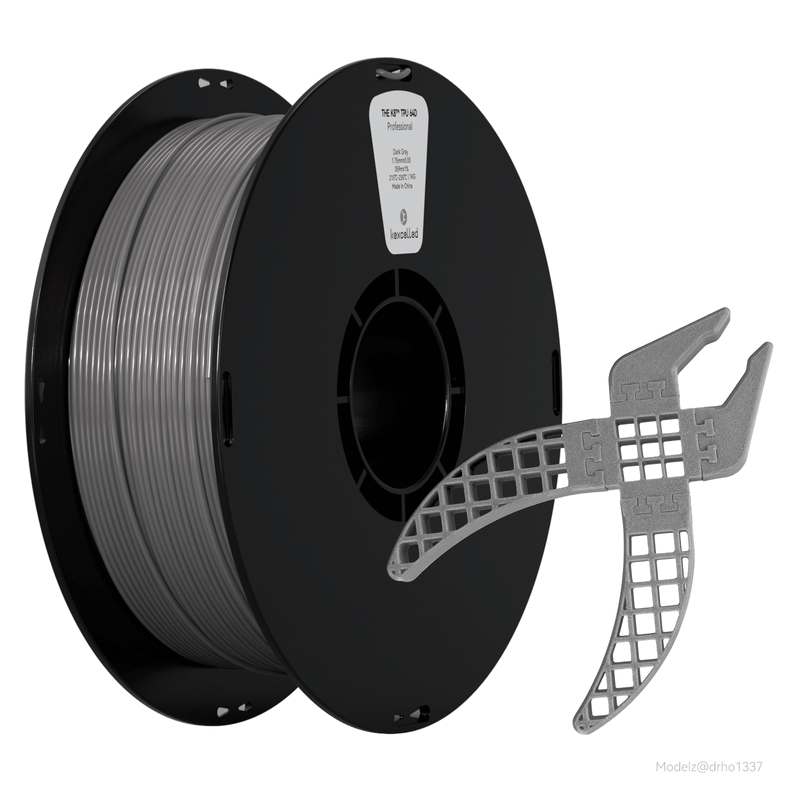

Select a color
Weight options:
: 1kg, 3kg, 5kg

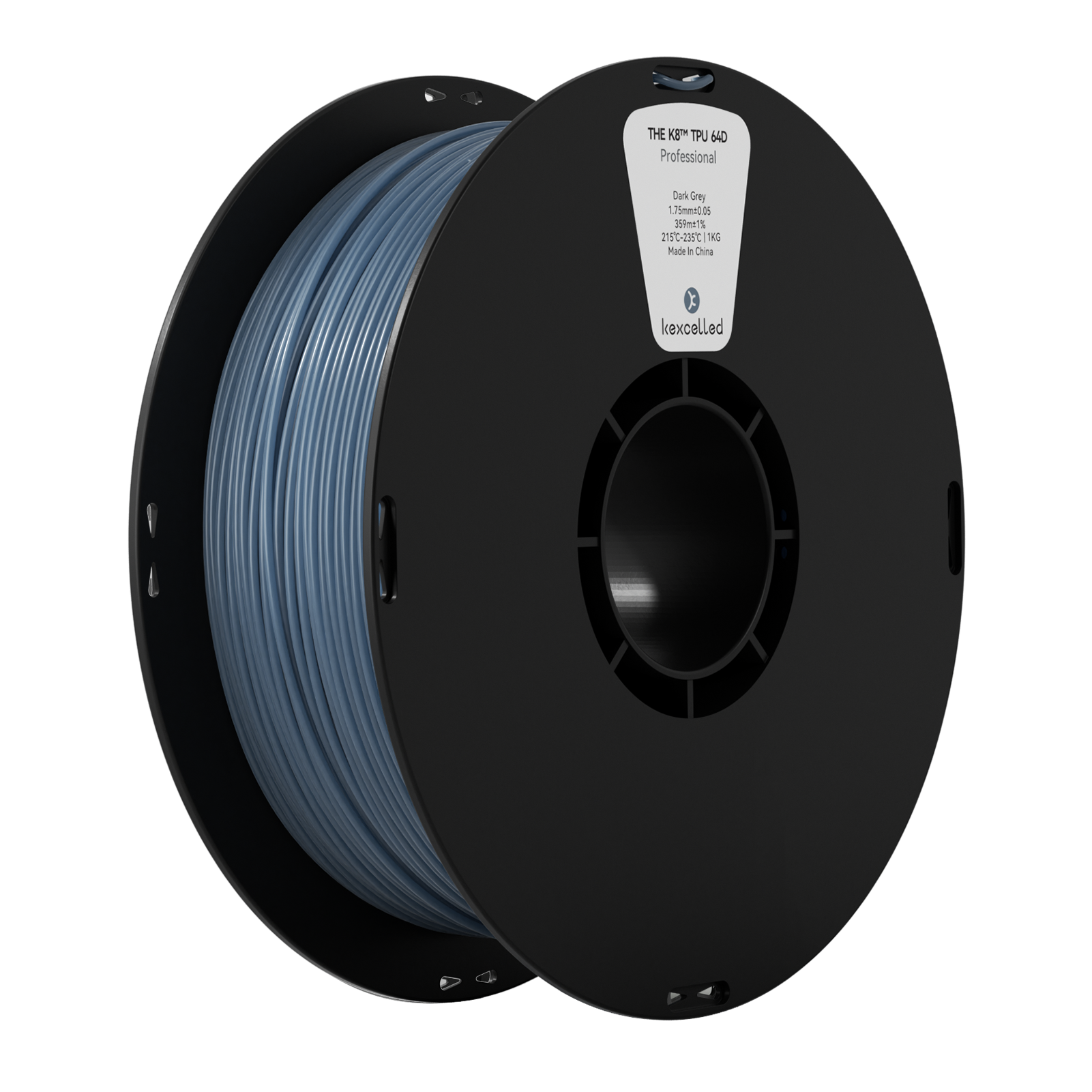

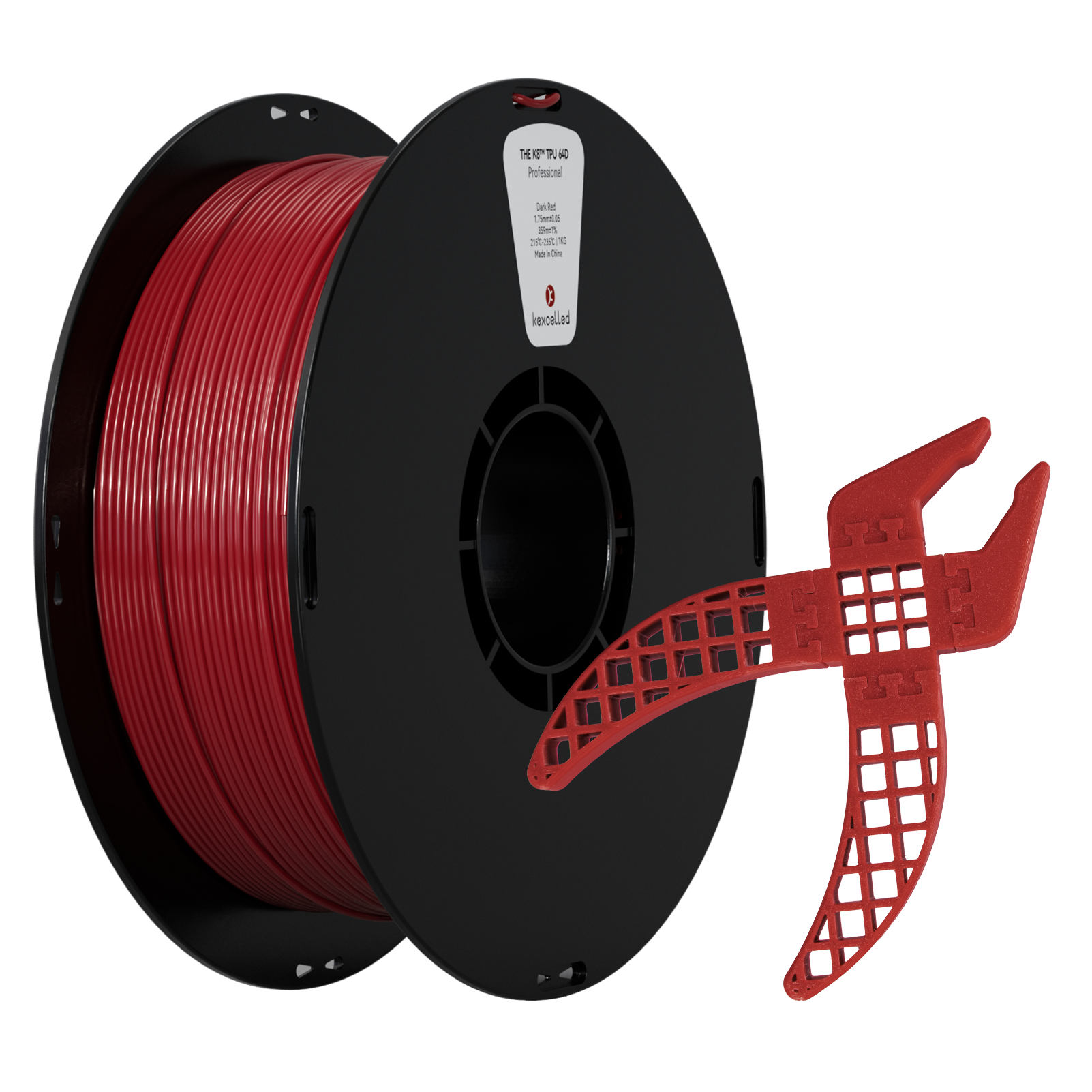

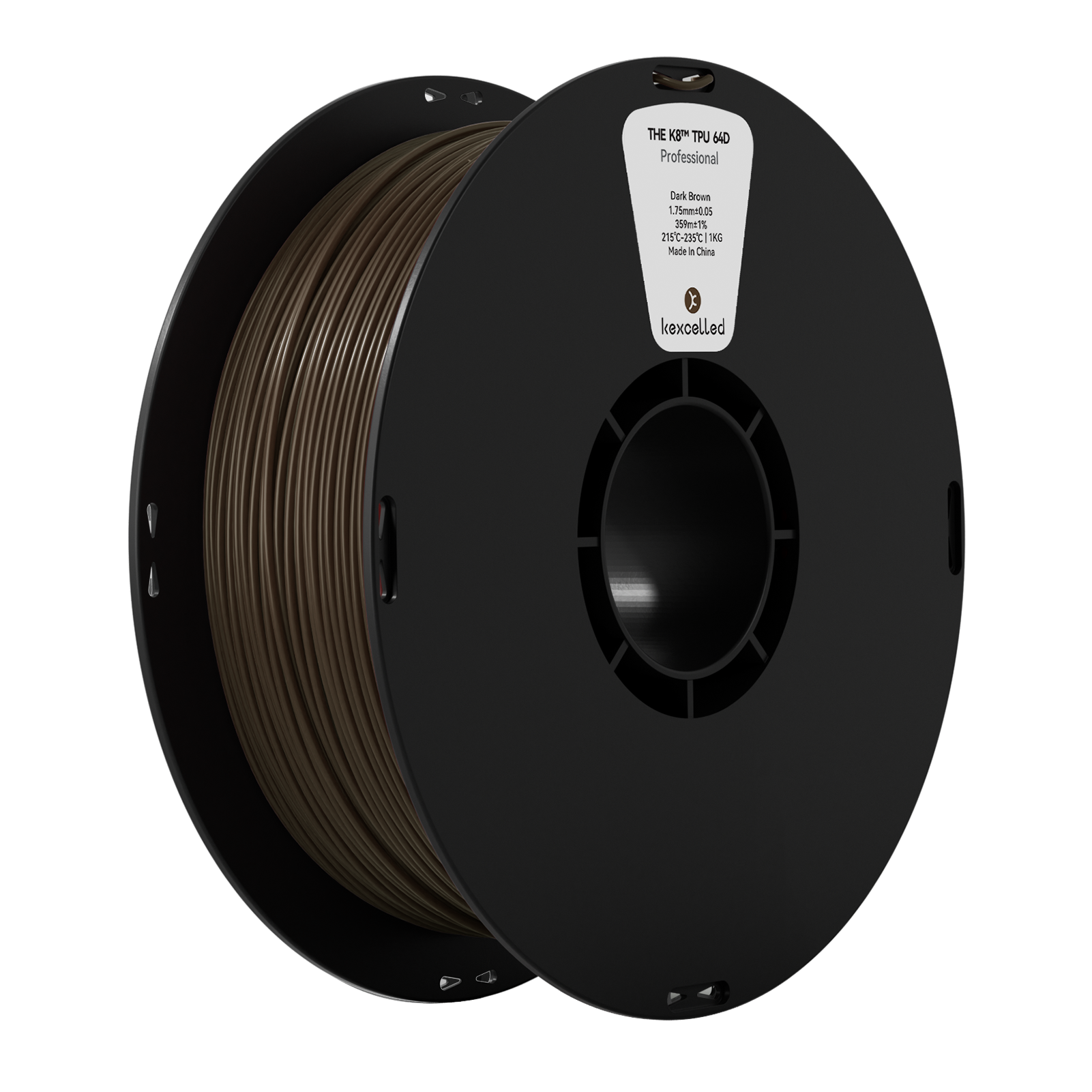

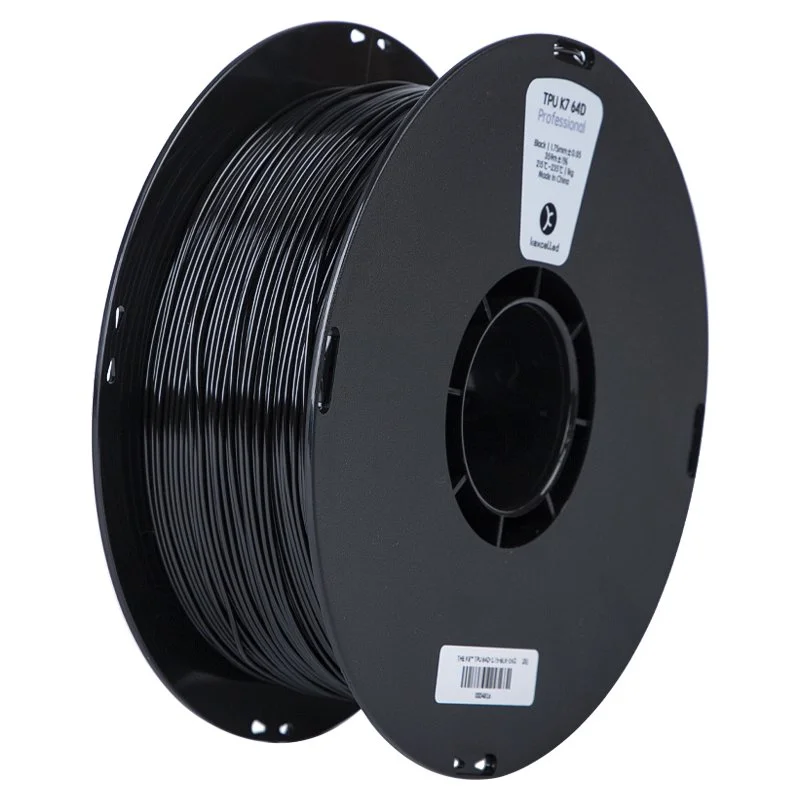

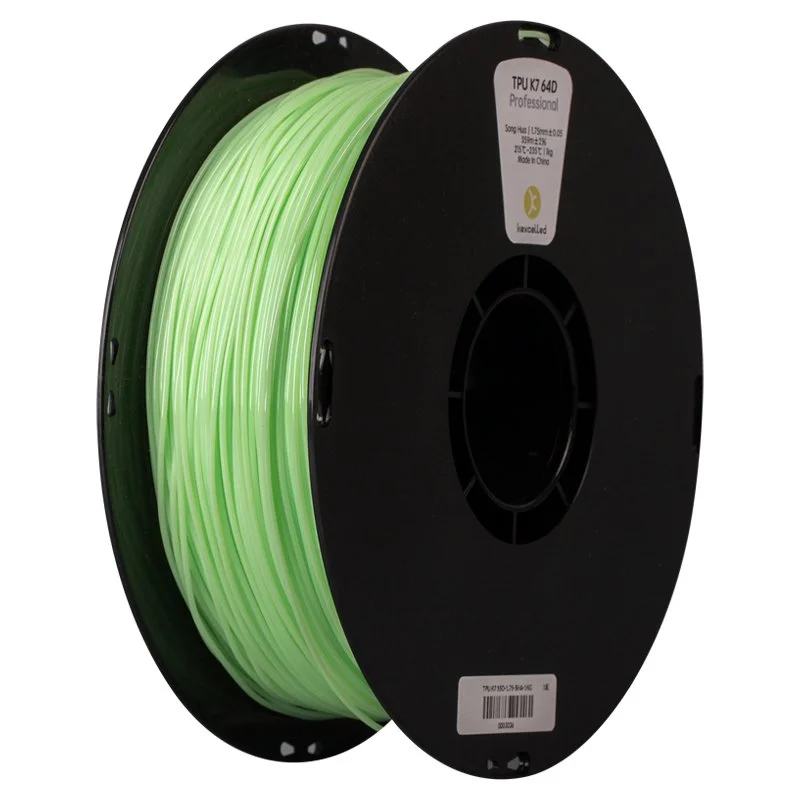

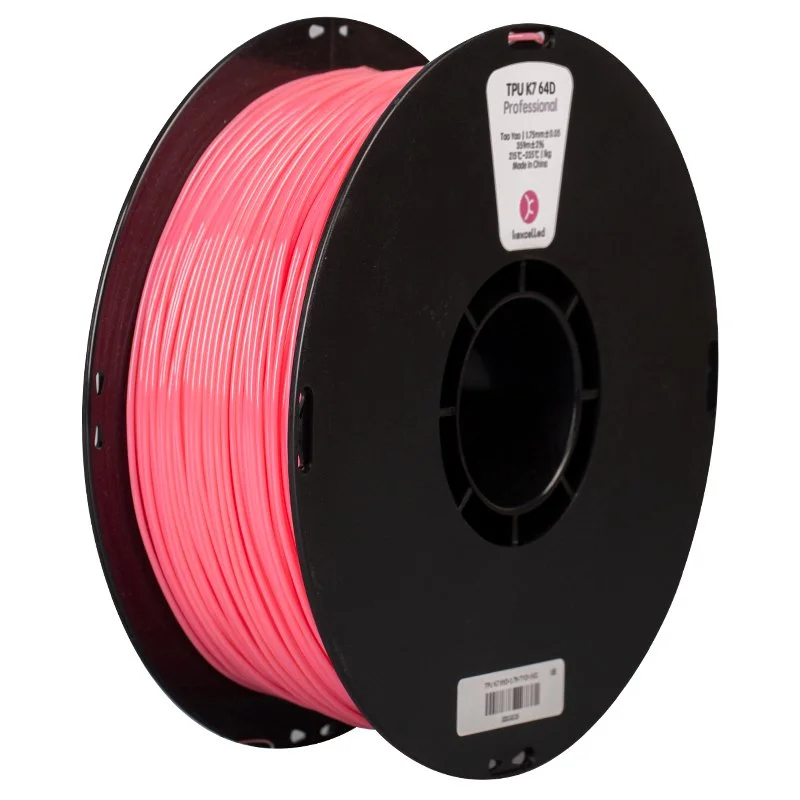

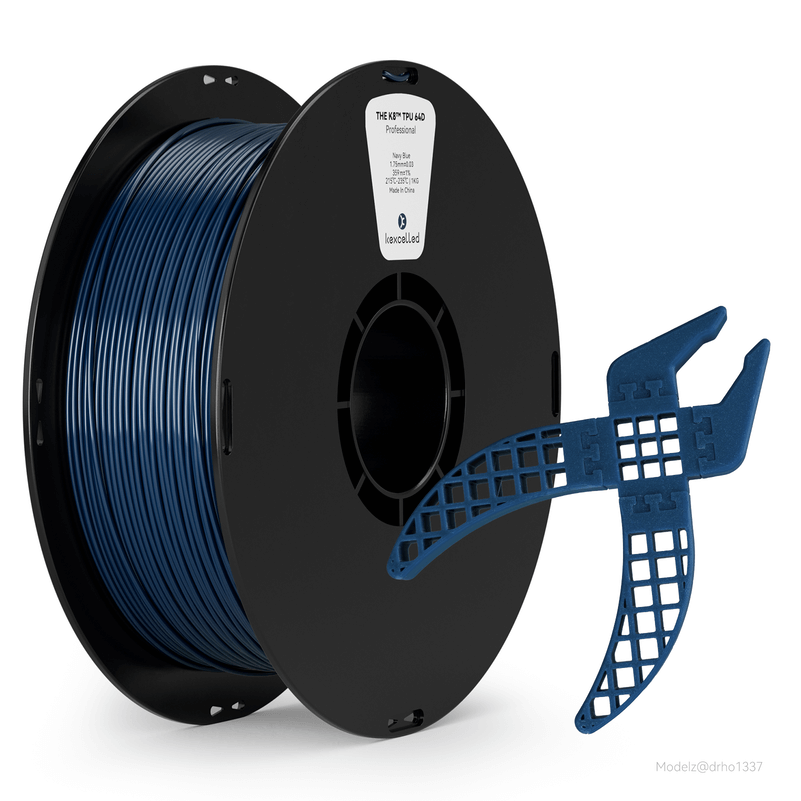

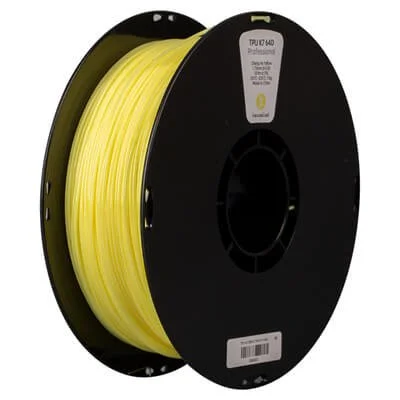

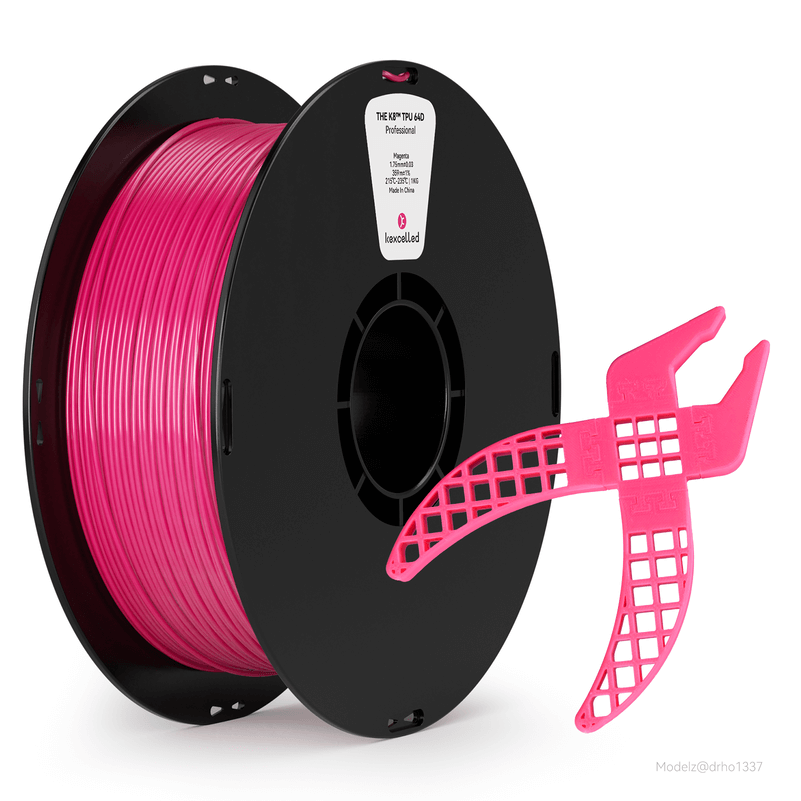

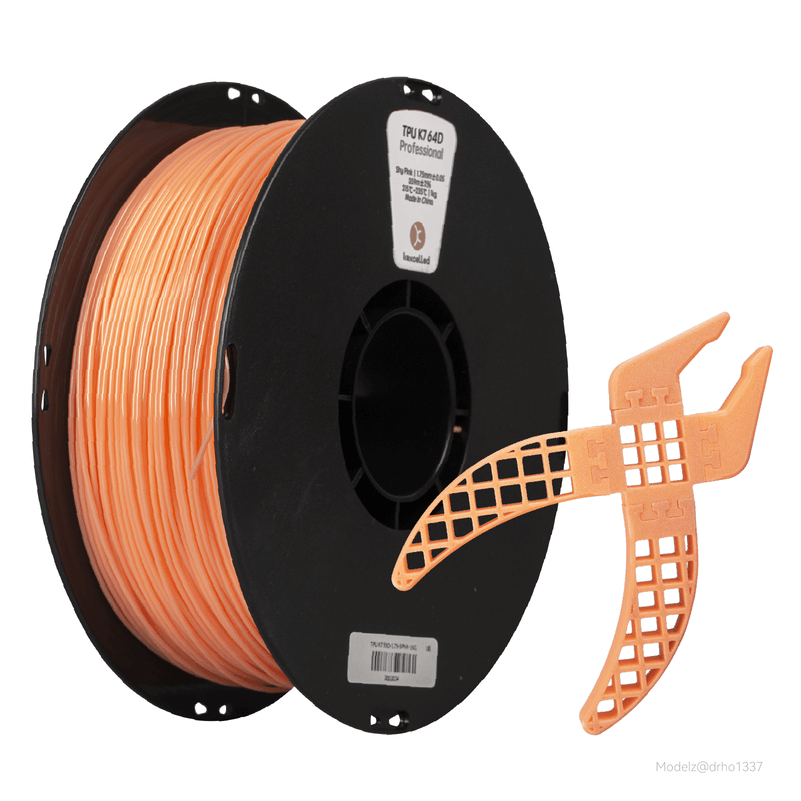

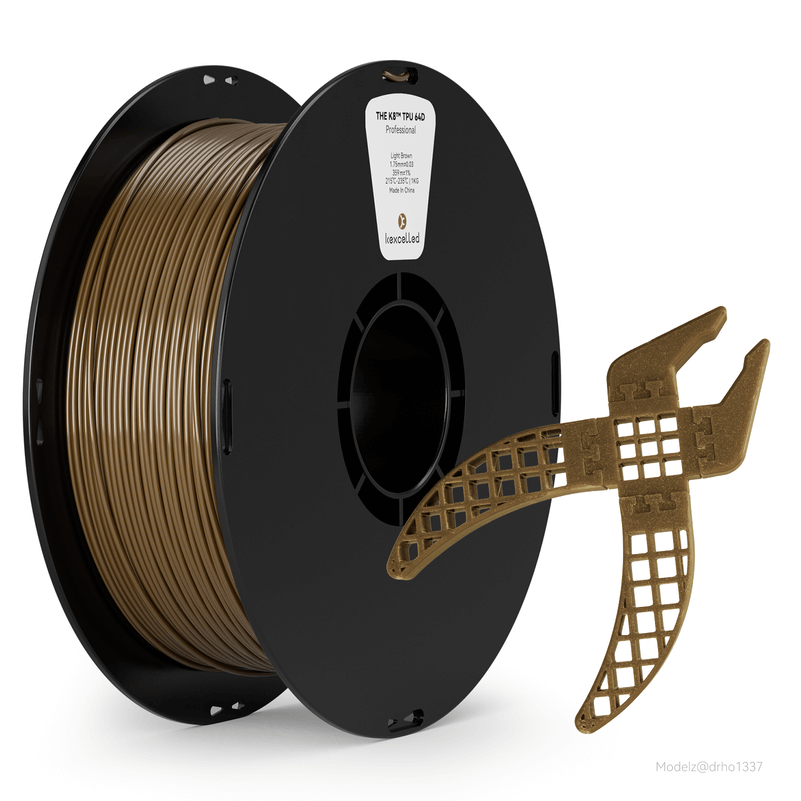

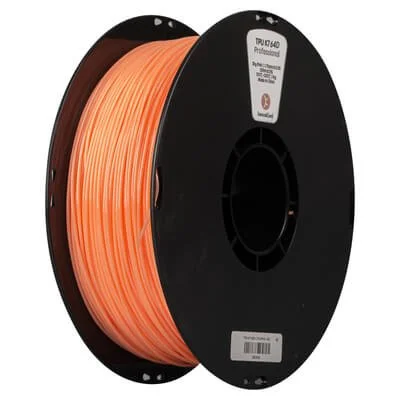

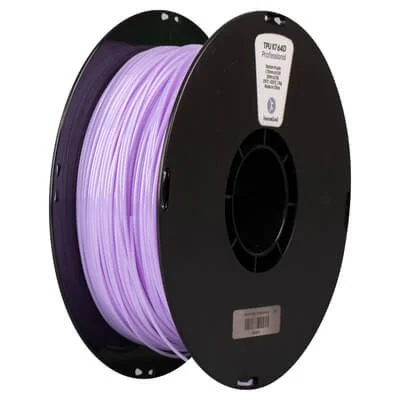

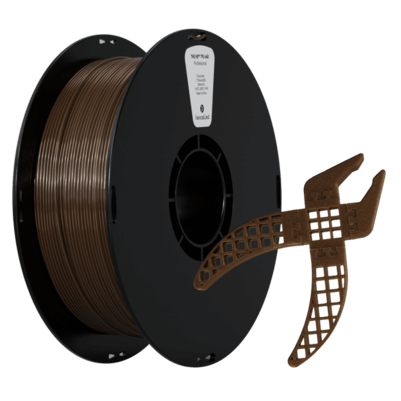

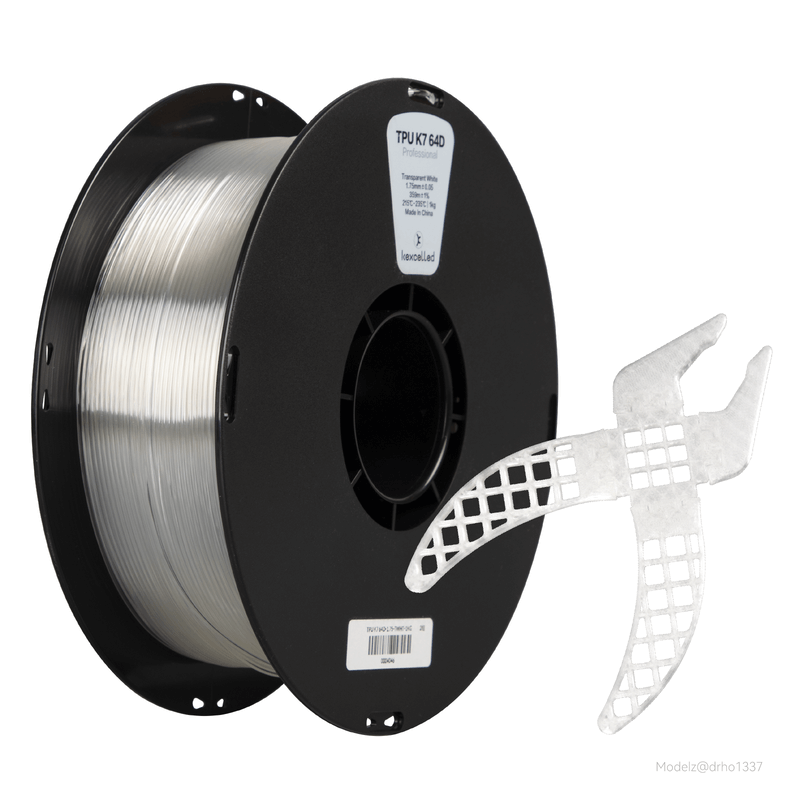

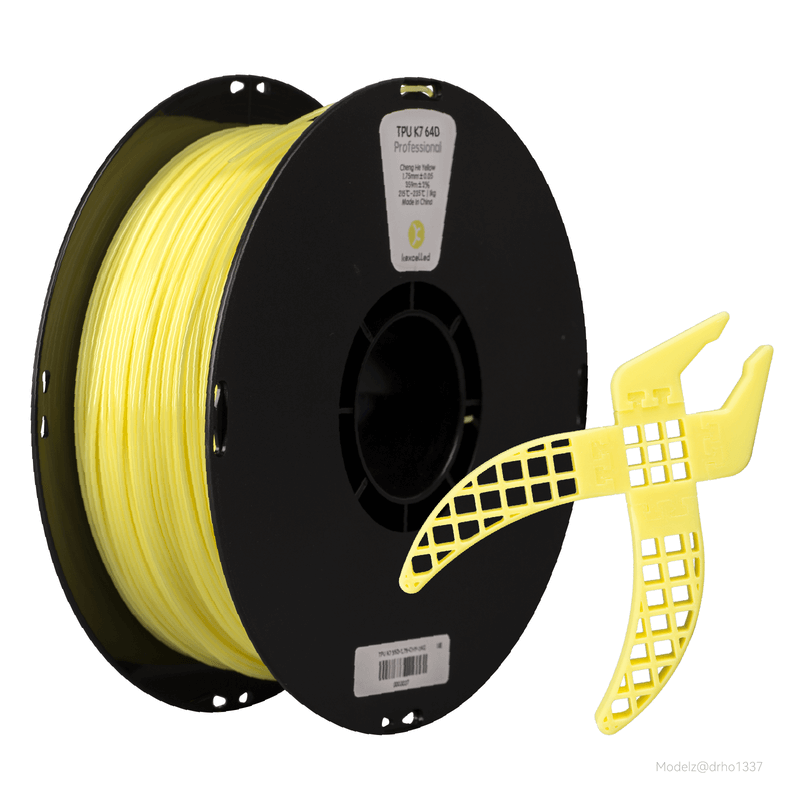

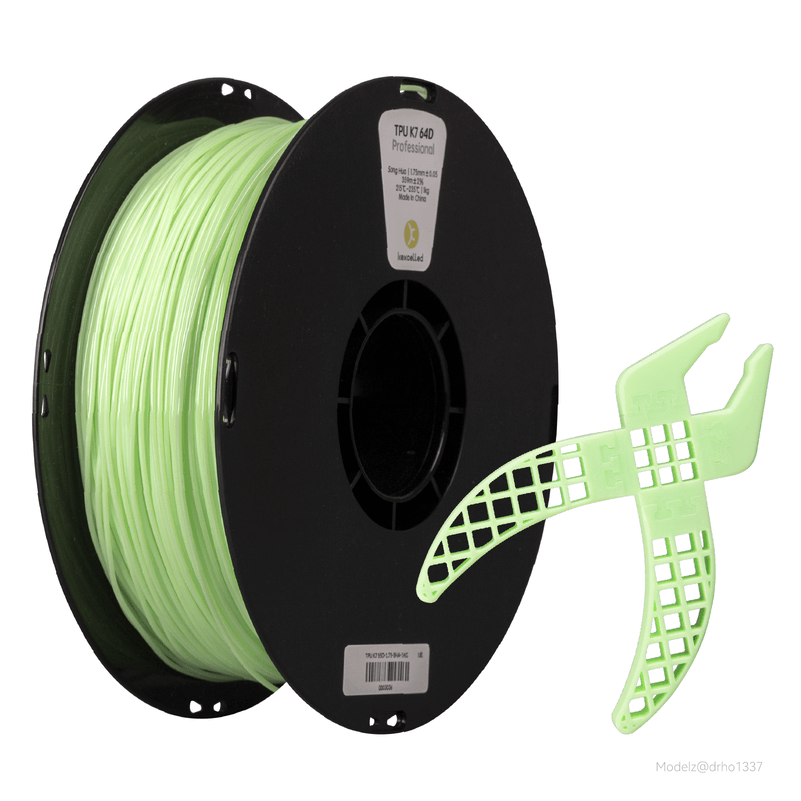

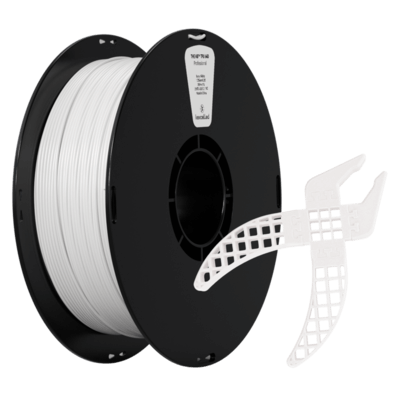

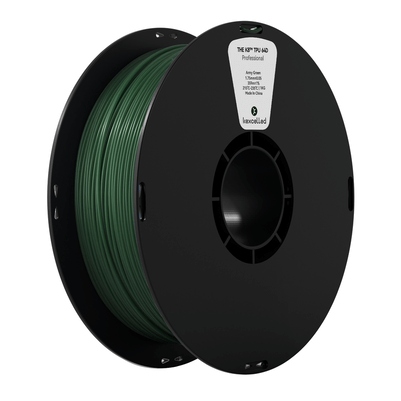

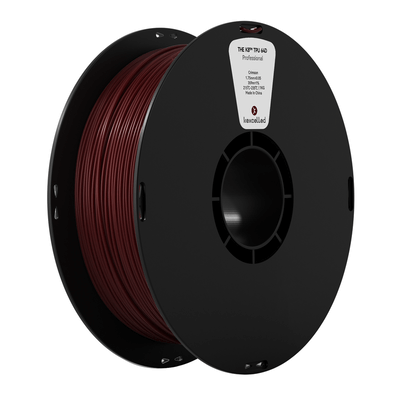

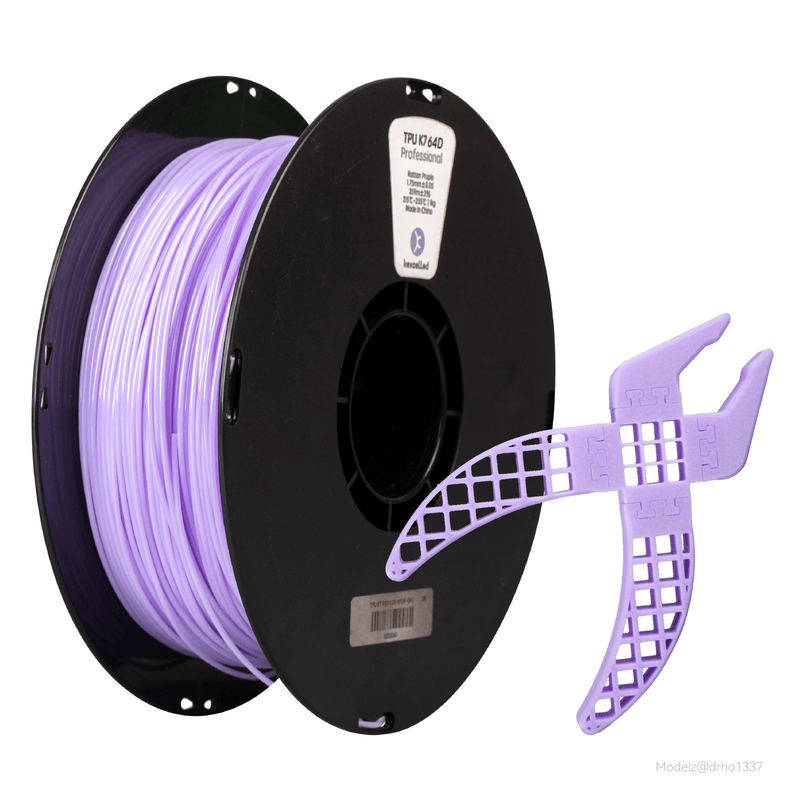

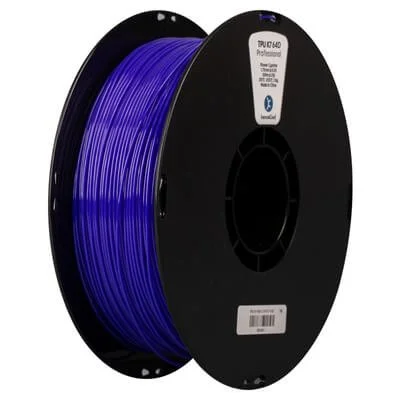

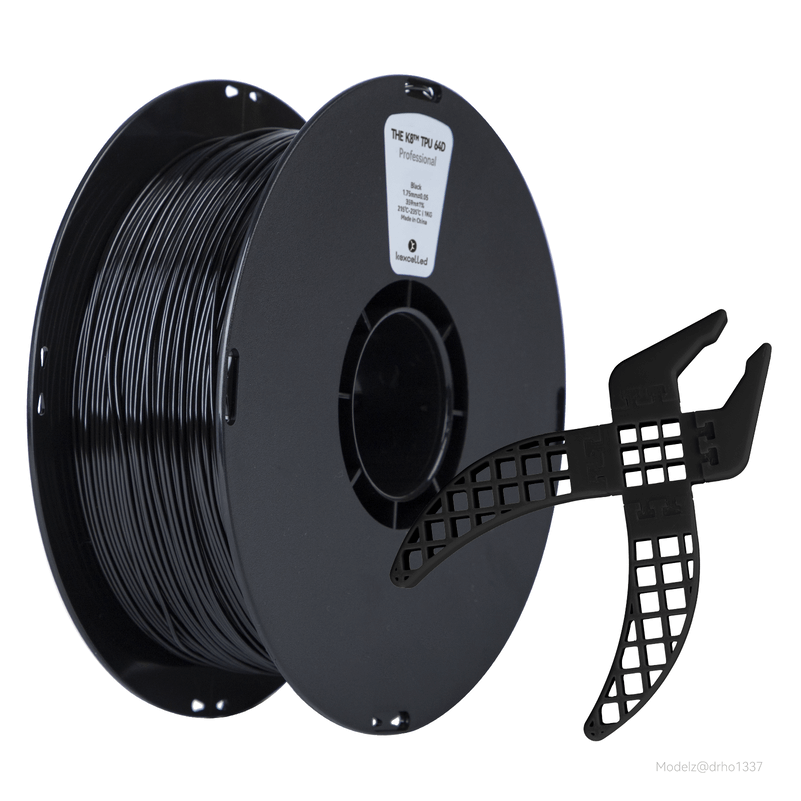

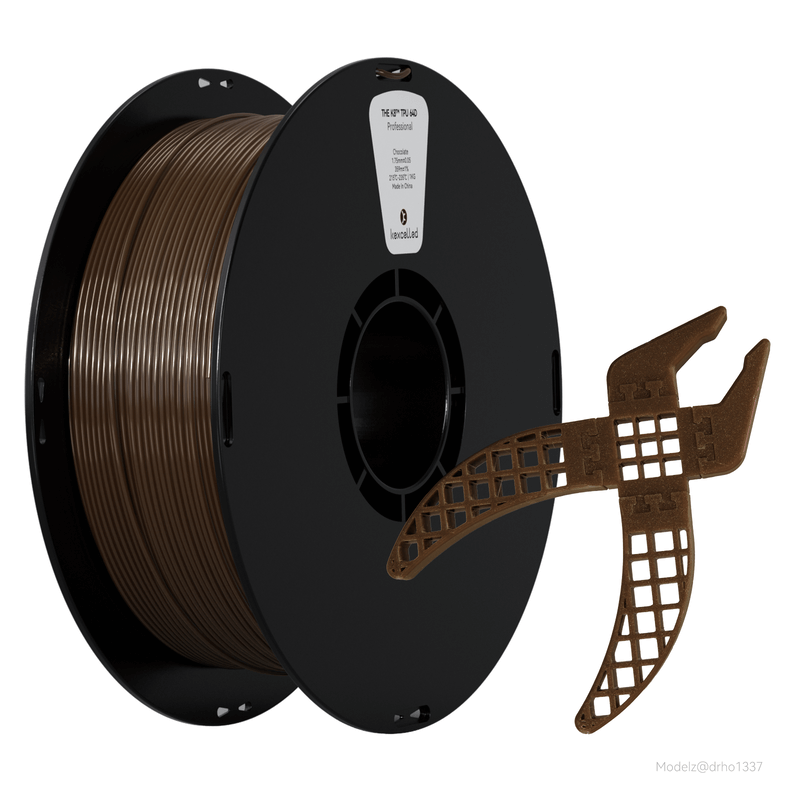

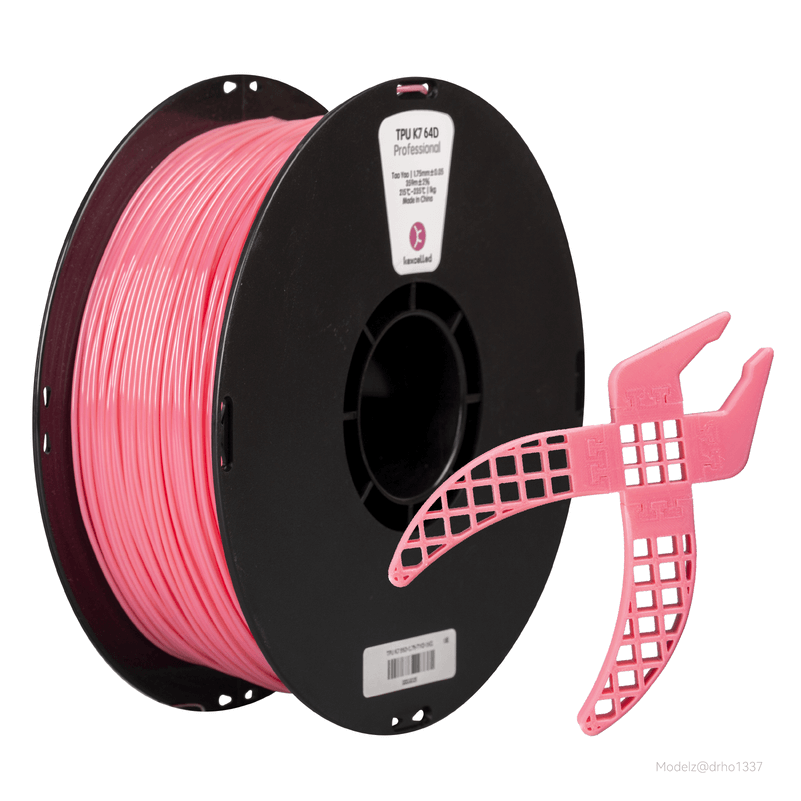

THE K8™ TPU 64D

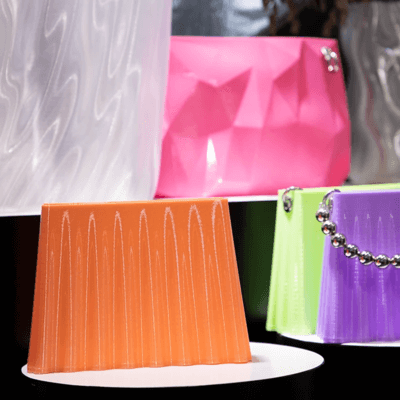

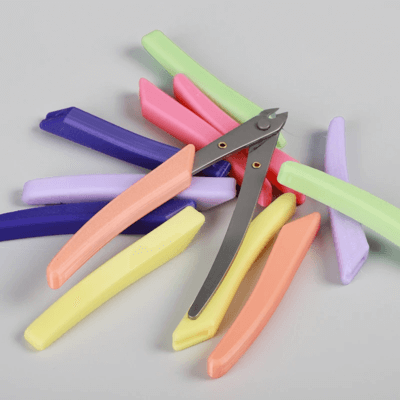

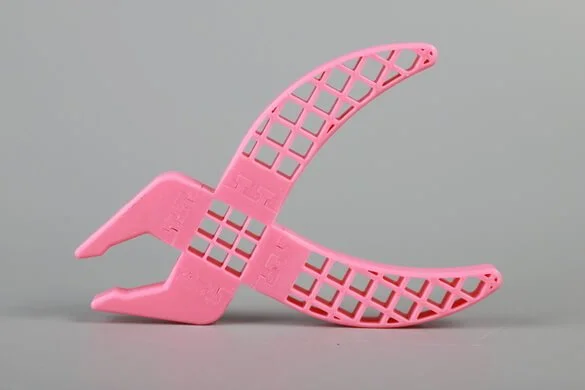

This is a high-performance flexible 3D printing material. TPU 64D features higher hardness and a certain level of resilience. It is widely applicable in fields such as footwear and bags, automotive parts, electronics, and sports equipment.
